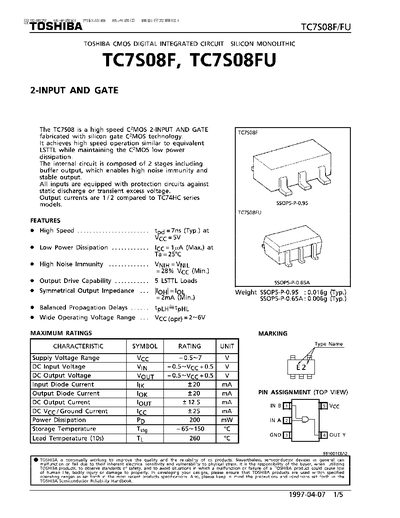

THSHIBA TC7S08F TC7S08FU Manual(2)
The TC7S08F/FU is a high‑speed CMOS 2‑input AND gate with low power dissipation, designed for LSTTL‑compatible operation. It features a buffered output stage for high noise immunity and includes protection against static discharge on all inputs.
The datasheet provides detailed maximum ratings, recommended operating conditions, DC and AC electrical characteristics, as well as package dimensions and outline drawings for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages.
Toshiba TC7S08FU specifications
| Low power dissipation (Icc max) | 14 µA (Max.) at Ta=25°C |
|---|---|
| Operating voltage range (Vcc) | 2 V to 6 V |
| Supply voltage range (VEE) | -0.5 V to 7 V |
| Input diode current (Iik) | +20 mA |
| Lead temperature (10 s) | 260 °C |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (Typ.) |
| Package weight (SSOP5‑P‑0.65A) | 0.006 g (Typ.) |
All Toshiba TC7S08FU documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage range can the TC7S08F/FU operate in?
It operates with a supply voltage (Vcc) from 2 V to 6 V.
What is the maximum supply voltage rating for the device?
The device is rated for a supply voltage (VEE) from –0.5 V to 7 V.
What is the supply voltage range for the TC7S08F/FU?
The device operates with a supply voltage (Vcc) from 2 V to 6 V.
What temperature range is recommended for operation?
The recommended operating temperature is from –40 °C to +85 °C.
