Key facts
- Brand
- Toshiba
- Model
- TC7S32F
- Industry
- Industrial
- Documents
- 4
- Languages
- EN
- Last added
- 2012-04-01
Start here

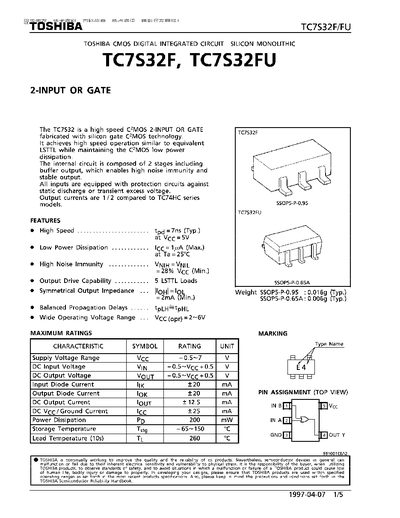

THSHIBA TC7S32F TC7S32FU Manual(3)
The TC7S32F/FU is a high‑speed C2MOS 2‑input OR gate offering low power dissipation and strong noise immunity. It features a two‑stage internal circuit with buffered output, providing stable output and protection against static discharge.
The device operates from a 2 V to 6 V supply, supports up to five LSTTL loads, and is available in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages. Typical propagation delay is 7 ns at 5 V, and it operates over a temperature range of –40 °C to 85 °C.
Toshiba TC7S32F specifications
| Typical propagation delay (tPHL) | 7 ns |
|---|---|
| Supply voltage range (VCC) | 2 V – 6 V |
| Output drive capability | 5 LSTTL loads |
| Minimum output current | 2 mA |
| Operating temperature range | -40 °C – 85 °C |
| Package type | SSOP5‑P‑0.95, SSOP5‑P‑0.65A |
| Typical weight | 0.016 g |
All Toshiba TC7S32F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the TC7S32F/FU?
The typical propagation delay is 7 ns at a 5 V supply.
What temperature range can the TC7S32F/FU operate in?
It operates from –40 °C to 85 °C.
What is the typical propagation delay of the TC7S32F/FU?
The typical propagation delay is 7 ns.
What supply voltage range does the TC7S32F/FU support?
It operates from 2 V to 6 V.
What supply voltage range does the TC7S32F/FU support?
It operates from 2 V to 6 V.
What is the output drive capability of the device?
The output can drive up to five LSTTL loads.
