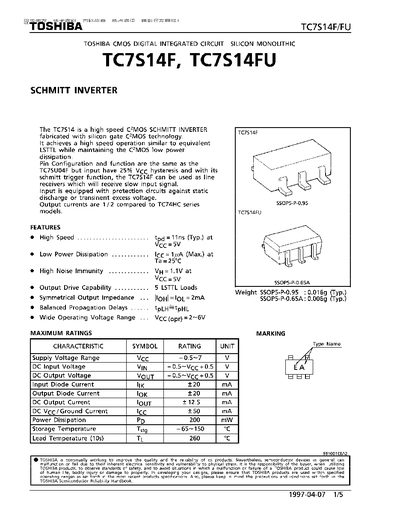

The TC7S14F/FU is a high‑speed C2MOS Schmitt inverter that offers low power dissipation while delivering performance comparable to LSTTL devices. It features 25% VCC hysteresis on the inputs and can be used as a line‑receiver for slow input signals, with built‑in protection against static discharge and over‑voltage.
Key specifications include a wide operating voltage range of 2 V to 6 V, typical propagation delay of 11 ns at 5 V, and a maximum output current of 125 mA. The device is supplied in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages, weighing 0.016 g and 0.006 g respectively, and is rated for storage temperatures from –65 °C to 150 °C.
| Propagation delay (typ) | 11 ns |
|---|---|
| Operating voltage range | 2–6 V |
| Maximum output current | 125 mA |
| Power dissipation | 200 mW |
| Storage temperature range | -65 °C to 150 °C |
| Lead temperature (10 s) | 260 °C |
| Package | SSOP5‑P‑0.95 (typical weight 0.016 g) |
The typical propagation delay is 11 ns when powered at 5 V.
It operates over a voltage range of 2 V to 6 V.
The device can source up to 125 mA of output current.
It can be stored from –65 °C up to 150 °C.
