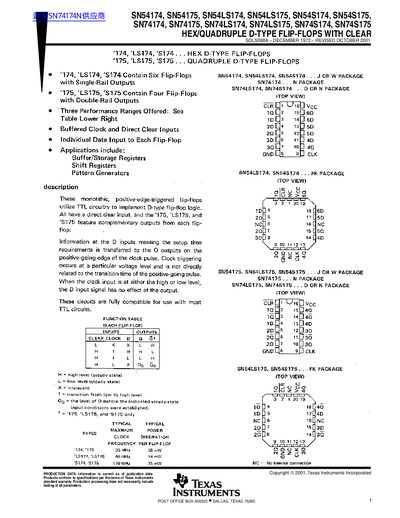

TEXAS INSTRUMENTS SN54174 SN54175 SN54LS174 SN54LS175 SN54S174 SN54S175 SN74174 SN74175 SN74LS174 SN74LS175 SN74S174 SN74S175 handbook(1)
This document provides technical specifications and electrical characteristics for the SN54174, SN54175, SN54LS174, SN54LS175, SN54S174, SN54S175, SN74174, SN74175, SN74LS174, SN74LS175, SN74S174, and SN74S175 integrated circuits. These monolithic, positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type logic with direct clear inputs.
Read onlineAll Texas Instruments SN54S174 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these flip-flops?
Applications include Buffer/Storage Registers, Shift Registers, and Pattern Generators.
What are the maximum clock frequencies for the different performance ranges?
The standard and low-power versions support up to 35 MHz and 40 MHz respectively, while the Schottky version supports up to 410 MHz.
Do these flip-flops have buffered clock inputs?
Yes, the circuits feature buffered clock and direct clear inputs.
Are these circuits compatible with other TTL circuits?
Yes, these circuits are fully compatible for use with most TTL circuits.
