provide SN54174, SN54175, SN54LS174, SN54LS175, SN54S174, SN54S175, SN74174, SN74175, SN74LS174, SN74LS175, SN74S174, SN74S175 HEX/QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR information.

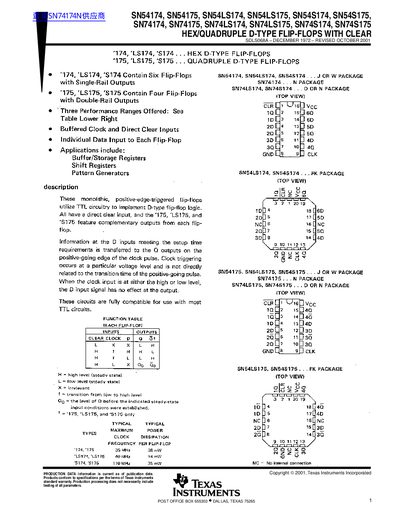

This document is a datasheet for Texas Instruments' SN54174, SN54175, SN74174, SN74175, and their Low-power (LS) and Schottky (S) variants. These monolithic, positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type logic with direct clear inputs. The '174 and 'LS174 models contain six flip-flops with single-rail outputs, while the '175 and 'LS175 models contain four flip-flops with double-rail (complementary) outputs.
| Maximum clock frequency | 35 MHz |
|---|
Yes, the circuits feature buffered clock and direct clear inputs.
Yes, these circuits are fully compatible for use with most TTL circuits.
