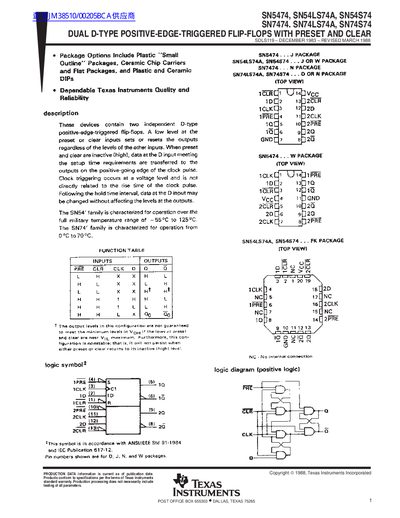

TEXAS INSTRUMENTS SN5474 SN54LS74A SN54S74 SN7474 SN74LS74A SN74S74 handbook
This document is a datasheet for the Texas Instruments SN5474, SN54LS74A, SN54S74, SN7474, SN74LS74A, and SN74S74 series. These devices contain two independent D-type positive-edge-triggered flip-flops with preset and clear inputs. The data is transferred to the outputs on the positive-going edge of the clock pulse when the preset and clear inputs are inactive (high).
Read onlineTexas Instruments SN54S74 specifications
| Operating Temperature (SN54 Family) | -55°C to 125°C |
|---|---|
| Clock Frequency (SN54LS74A) | 25 MHz |
| Clock Frequency (SN54S74) | 10 MHz |
| Number of Flip-Flops | Dual (2) |
Source: TEXAS INSTRUMENTS SN5474 SN54LS74A SN54S74 SN7474 SN74LS74A SN74S74 handbook
All Texas Instruments SN54S74 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the package options for these devices?
Package options include Plastic 'Small Outline' Packages, Ceramic Chip Carriers, and Plastic and Ceramic D or N Packages.
From: TEXAS INSTRUMENTS SN5474 SN54LS74A SN54S74 SN7474 SN74LS74A SN74S74 handbook
What is the maximum operating frequency of the SN54S74?
The flip‑flop can operate up to about 25 MHz.
