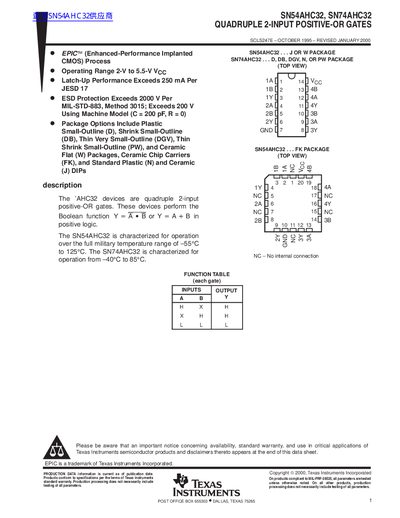

Texas Instruments SN54AHC32 SN74AHC32 Datasheet
Datasheet 6 pages · 85 KB · EN
The SN54AHC32 and SN74AHC32 are quadruple 2‑input positive‑OR gates offered by Texas Instruments. The document provides electrical characteristics, absolute maximum ratings, recommended operating conditions, and switching performance for multiple package types.
Key information includes supply and input voltage ranges, current capabilities, thermal impedance for each package, and storage temperature limits, along with detailed timing waveforms and test setup diagrams.
Texas Instruments SN54AHC32 specifications
| Supply voltage range (VCC) | 2 V to 5.5 V |
|---|---|
| Output clamp current | 20 mA |
| Continuous output current | 25 mA |
| Continuous current through VCC or GND | 50 mA |
| Package thermal impedance (DB package) | 96 °C/W |
| Storage temperature range | 65 °C to 150 °C |
All Texas Instruments SN54AHC32 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended supply voltage range?
The recommended supply voltage is 2 V to 5.5 V.
What logic function do the SN54AHC32 and SN74AHC32 perform?
They are quadruple 2‑input positive‑OR gates that implement the Boolean function Y = A OR B.
What is the recommended supply voltage range for these devices?
The recommended supply voltage is 2 V to 5.5 V.
