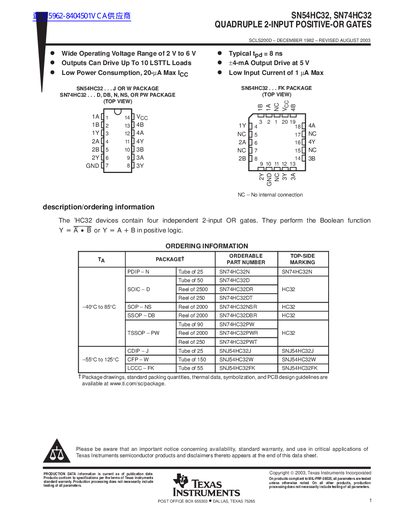

Texas Instruments SN54HC32, SN74HC32 Quadruple 2-Input Positive-OR Gates Datasheet
The document describes the SN54HC32 and SN74HC32 devices, which contain four independent 2-input OR gates performing the Boolean function Y=A+B in positive logic. Key features include a wide operating voltage range of 2 V to 6 V, the ability to drive up to 10 LSTTL loads, and low power consumption with a maximum supply current of 20 µA.
Read onlineTexas Instruments SN54HC32 specifications
| Typical Propagation Delay | 8 ns |
|---|---|
| Output Drive Capability | Up To 10 LSTTL Loads |
| Max Supply Current | 20 µA |
| Max Input Current | 1 µA |
| Operating Temperature (Commercial) | -55°C to 125°C |
| Operating Temperature (Military) | -55°C to 85°C |
Source: Texas Instruments SN54HC32, SN74HC32 Quadruple 2-Input Positive-OR Gates Datasheet
All Texas Instruments SN54HC32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the recommended operating conditions for the supply voltage?
The recommended supply voltage range is 2 V to 6 V.
From: Texas Instruments SN54HC32, SN74HC32 Quadruple 2-Input Positive-OR Gates Datasheet
What is the maximum output current?
The maximum continuous output current is 25 mA.
From: Texas Instruments SN54HC32, SN74HC32 Quadruple 2-Input Positive-OR Gates Datasheet
What is the supply voltage range for the SN54HC32 and SN74HC32 devices?
Both families operate from 2 V up to 6 V.
What is the typical propagation delay of these OR gates?
The typical propagation delay (tpg) is 8 ns.
