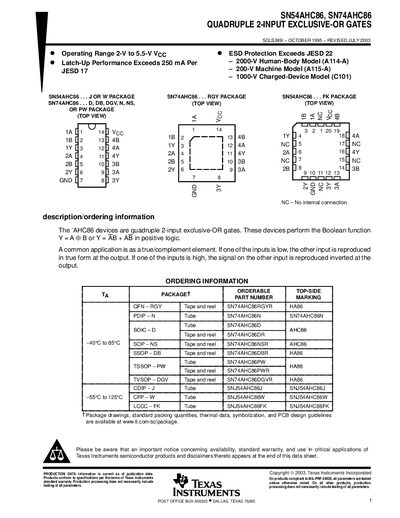

Texas Instruments SN54AHC86 SN74AHC86 Quadruple 2-Input Exclusive-OR Gates Data Sheet
The SN54AHC86 and SN74AHC86 are quadruple 2‑input exclusive‑OR gates that implement the Boolean function Y = A ⊕ B. They are offered in a variety of surface‑mount and through‑hole packages and are intended for use as true/complement elements in digital logic designs.
The document provides operating ranges, absolute maximum ratings, recommended operating conditions, electrical characteristics, switching and noise performance, as well as detailed packaging, ordering and tape‑and‑reel information. An important notice about warranty, safety‑critical use and compliance appears at the end of the sheet.
Texas Instruments SN54AHC86 specifications
| Operating voltage range | 2 V to 5.5 V VCC |
|---|---|
| Supply voltage range (absolute max) | -0.5 V to 7 V |
| Continuous output current | ±25 mA |
| Continuous current through VCC or GND | ±50 mA |
| Package thermal impedance (D package) | 86 °C/W |
Source: Texas Instruments SN54AHC86 SN74AHC86 Quadruple 2-Input Exclusive-OR Gates Data Sheet
All Texas Instruments SN54AHC86 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What logic function does the SN74AHC86 perform?
It performs the Boolean exclusive‑OR function Y = A ⊕ B (or Y = A B + AB) in positive logic.
From: Texas Instruments SN54AHC86 SN74AHC86 Quadruple 2-Input Exclusive-OR Gates Data Sheet
What is the recommended supply voltage range for these gates?
The recommended operating voltage range is 2 V to 5.5 V VCC.
From: Texas Instruments SN54AHC86 SN74AHC86 Quadruple 2-Input Exclusive-OR Gates Data Sheet
What logical function does the SN74AHC86 perform?
It implements a 2‑input exclusive‑OR gate, producing Y = A⊕B in positive logic.
From: Texas Instruments SN54AHC86 SN74AHC86 Quadruple 2-Input Exclusive-OR Gates Datasheet
What is the storage temperature range for the devices?
The devices can be stored from 65 °C up to 150 °C.
From: Texas Instruments SN54AHC86 SN74AHC86 Quadruple 2-Input Exclusive-OR Gates Datasheet
