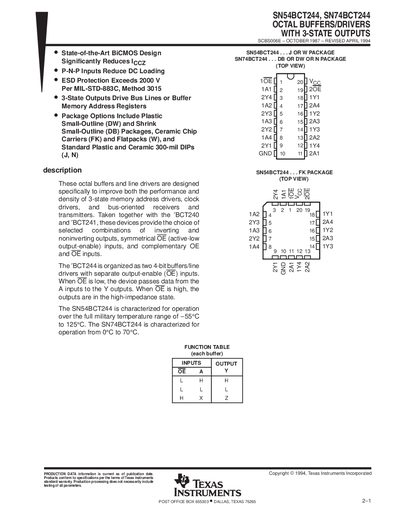

TEXAS INSTRUMENTS SN54BCT244 SN74BCT244 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS Data Sheet
The SN54BCT244 and SN74BCT244 are state-of-the-art BiCMOS devices designed to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers. These octal buffers/drivers feature P-N-P inputs that reduce DC loading and offer ESD protection exceeding 2000V per MIL-STD-883C.
Read onlineTexas Instruments SN54BCT244 specifications
| Operating Temperature (SN74BCT244) | 0°C to 70°C |
|---|---|
| High-Level Output Current (SN54BCT244) | -96 mA |
| High-Level Output Current (SN74BCT244) | -128 mA |
Source: TEXAS INSTRUMENTS SN54BCT244 SN74BCT244 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS Data Sheet
All Texas Instruments SN54BCT244 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the OE input?
When OE is low, the device passes data from inputs to outputs; when OE is high, outputs are in a high-impedance state.
From: TEXAS INSTRUMENTS SN54BCT244 SN74BCT244 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS Data Sheet
What package options are available?
Available packages include Plastic Small-Outline (DW), Shrink Small-Outline (DB), Ceramic Chip Carriers (FK), Flatpacks (W), and DIPs (J, N).
From: TEXAS INSTRUMENTS SN54BCT244 SN74BCT244 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS Data Sheet
Does the device provide ESD protection?
Yes, the device includes ESD protection that exceeds 2000 V.
From: Texas Instruments SN54BCT244 / SN74BCT244 Octal Buffer/Driver with 3-State Outputs Datasheet
