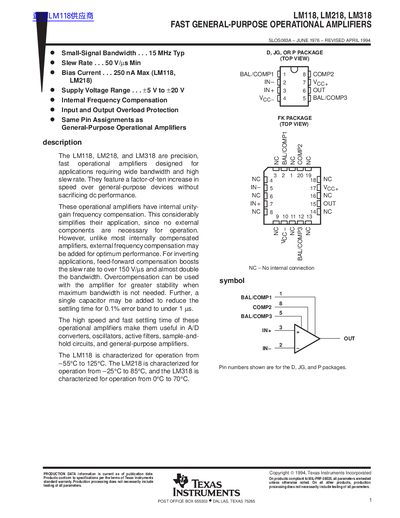

Texas Instruments LM118/LM218/LM318 Operational Amplifiers Datasheet
This document provides a technical overview of the Texas Instruments LM118, LM218, and LM318 fast general-purpose operational amplifiers. These devices are designed for applications requiring wide bandwidth and high slew rate, featuring internal unity-gain frequency compensation to simplify circuit design without external components.
The datasheet details three distinct models characterized for different operating temperature ranges: the LM118 (-55°C to 125°C), the LM218 (-25°C to 85°C), and the LM318 (0°C to 70°C). It includes comprehensive electrical specifications, pin configurations for various packages (D, FK, JG, P), and dissipation rating tables.
Texas Instruments LM318 specifications
| Small-Signal Bandwidth (Typ) | 15 MHz |
|---|---|
| Slew Rate (Min) | 50 V/s |
| Bias Current (Max) LM118/LM218 | 250 nA |
| Supply Voltage Range | +5 V to +20 V |
| Operating Temperature LM118 | -55°C to 125°C |
| Operating Temperature LM218 | -25°C to 85°C |
| Operating Temperature LM318 | 0°C to 70°C |
Source: Texas Instruments LM118/LM218/LM318 Operational Amplifiers Datasheet
All Texas Instruments LM318 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating temperature ranges for the LM series?
The LM118 operates from -55°C to 125°C, the LM218 from -25°C to 85°C, and the LM318 from 0°C to 70°C.
From: Texas Instruments LM118/LM218/LM318 Operational Amplifiers Datasheet
Do these amplifiers require external frequency compensation?
No, they feature internal unity-gain frequency compensation, though external components can be added for optimum performance.
From: Texas Instruments LM118/LM218/LM318 Operational Amplifiers Datasheet
Are the LM118 and LM218 still available?
No, the LM118 and LM218 are obsolete and are no longer supplied.
From: Texas Instruments LM118/LM218/LM318 Operational Amplifier Datasheet
What is the typical slew rate of the LM318?
The LM318 has a minimum slew rate of 50 V/µs.
From: Texas Instruments LM118/LM218/LM318 Operational Amplifier Datasheet
