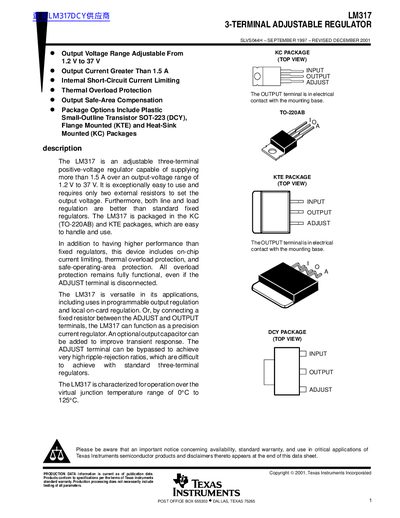

Texas Instruments LM317 3-Terminal Adjustable Regulator Datasheet
The LM317 is an adjustable three-terminal positive-voltage regulator designed for applications such as programmable output regulation, local on-card regulation, and precision current regulation. It requires only two external resistors to set the output voltage and offers better line and load regulation than standard fixed regulators.
The device includes internal protection features including short-circuit current limiting, thermal overload protection, and safe-operating-area compensation. It is available in multiple package options: Plastic Small-Outline Transistor (SOT-223), Flange Mounted (KTE), and Heat-Sink Mounted (KC).
Texas Instruments LM317 specifications
| Output Voltage Range | 1.2 V to 37 V |
|---|---|
| Output Current | > 1.5 A |
| Reference Voltage (Vref) | 1.2 V to 1.3 V |
| Operating Temperature Range | 0°C to 125°C |
| Input-to-Output Differential Voltage (Max) | 40 V |
Source: Texas Instruments LM317 3-Terminal Adjustable Regulator Datasheet
All Texas Instruments LM317 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the package options for the LM317?
The device is available in SOT-223 (DCY), Flange Mounted (KTE), and Heat-Sink Mounted (KC) packages.
From: Texas Instruments LM317 3-Terminal Adjustable Regulator Datasheet
Does the LM317 include thermal overload protection?
Yes, it includes on-chip current limiting, thermal overload protection, and safe-operating-area protection.
From: Texas Instruments LM317 3-Terminal Adjustable Regulator Datasheet
How much current can the LM317 deliver?
It can supply more than 1.5 A of output current.
From: Texas Instruments LM317 Adjustable Regulator Datasheet
What is the reference voltage used by the LM317?
The internal reference voltage is 1.25 V.
From: Texas Instruments LM317 Adjustable Regulator Datasheet
