CD74AC04, CD74ACT04, CD74AC05 and CD74ACT05 are hex inverters that utilize the Harris Advanced CMOS Logic technology. They feature fast switching speed, low power consumption, good anti-static ability, large output drive current, and can drive 50 ohm transmission lines.

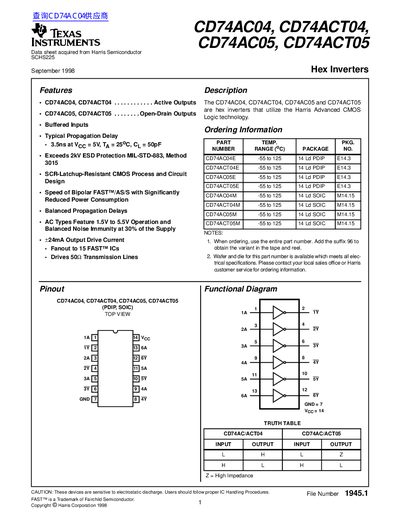

This document is a technical datasheet for the CD74AC04, CD74ACT04, CD74AC05, and CD74ACT05 hex inverter integrated circuits manufactured by Texas Instruments (originally acquired from Harris Semiconductor). The devices utilize Advanced CMOS Logic technology to provide active or open-drain outputs with buffered inputs.
| Supply Voltage Range (AC Types) | 1.5V to 5.5V |
|---|---|
| Supply Voltage Range (ACT Types) | 4.5V to 5.5V |
| Operating Temperature Range | -55°C to 125°C |
| Typical Propagation Delay (AC Types) | 3.5ns at Vcc = 5V |
| Output Drive Current | +24mA |
The maximum supply voltage is 6V for DC ratings and 5.5V for AC operation.
The maximum propagation delay is 8.5 ns for AC types at 5V.
The maximum junction temperature is 150°C.
