Start here

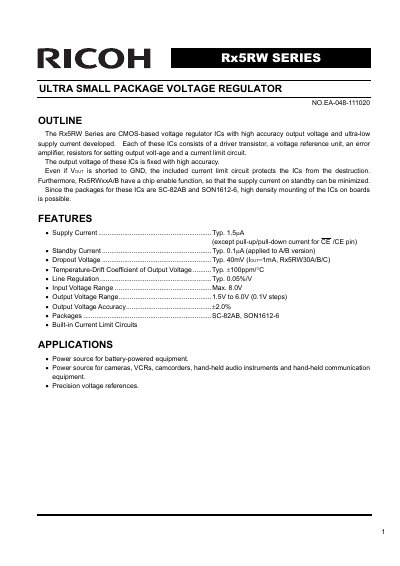

RICOH Rx5RW SERIES Manual(1)
The Ricoh RxSRW Series consists of CMOS-based voltage regulator ICs featuring high accuracy output voltage and ultra-low supply current. These devices include a driver transistor, voltage reference unit, error amplifier, resistors for setting output voltage, and a built-in current limit circuit to protect against short circuits.
Available in SC-82AB and SON1612-6 packages, the series supports output voltages from 1.5V to 6.0V in 0.1V steps. The ICs are designed for use as power sources in battery-powered equipment such as cameras, VCRs, camcorders, and hand-held communication devices.
Ricoh RX5RW specifications
| Supply Current (Typ) | 1.5uA |
|---|---|
| Output Voltage Range | 1.5V to 6.0V |
| Output Voltage Accuracy | +/-2.0% |
| Operating Temperature Range | -40 to +85 C |
| Input Voltage Max | 9.0V |
| Output Current Max | 150 mA |
Source: RICOH Rx5RW SERIES Manual(1)
All Ricoh RX5RW documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for the RxSRW series?
The ICs are available in SC-82AB and SON1612-6 packages.
Does the RxSRW series include a chip enable function?
Yes, RxSRWxxA/B versions have a chip enable function to minimize supply current on standby.
What are the available package types for the Rx5RW Series?
The series is available in SON1612-6 and SC-82AB packages.
How is the polarity of the CE pin selected?
The polarity can be selected as 'L' active, 'H' active, or without a chip enable pin depending on the model.
