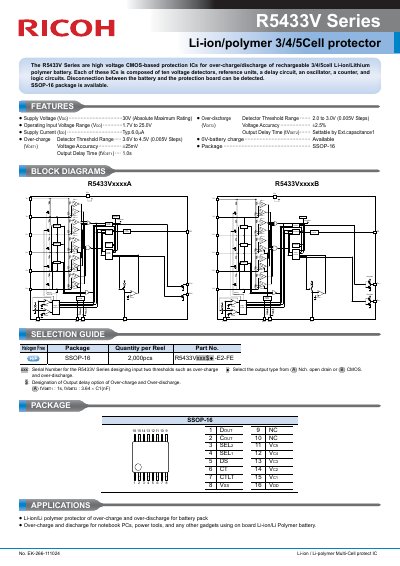

The R5433V Series are high voltage CMOS-based protection ICs for over-charge/discharge of rechargeable 3/4/5cell Li-ion/Lithium polymer battery. Each of these ICs is composed of ten voltage detectors, reference units, a delay circuit, an oscillator, a counter, and logic circuits. Disconnection between the battery and the protection board can be detected. SSOP-16 package is available.
The Ricoh R5433V Series consists of high voltage CMOS-based protection ICs designed for over-charge and over-discharge protection of rechargeable 3, 4, or 5-cell Li-ion and Lithium polymer battery packs. Each IC integrates ten voltage detectors, reference units, a delay circuit, an oscillator, a counter, and logic circuits to manage battery safety.
| Supply Voltage (Von) | 2.0 to 3.0V (0.005V Steps) |
|---|---|
| Supply Current (lop) | Settable by Ext.capacitance |
| Over-charge Detector Threshold Range | 3.6V to 4.5V (0.005V Steps) |
| Voltage Accuracy (Vet) | +25mV |
| Package | SSOP-16 |
| Output Delay Time (tVoer1) | 1.08 |
| Absolute Maximum Rating | 30V |
The R5433V Series are protection ICs specifically for rechargeable 3/4/5cell Li-ion/Lithium polymer batteries.
The supply voltage (Von) can be set from 2.0 to 3.0V in steps of 0.005V.
The product has an absolute maximum rating of 30V.
