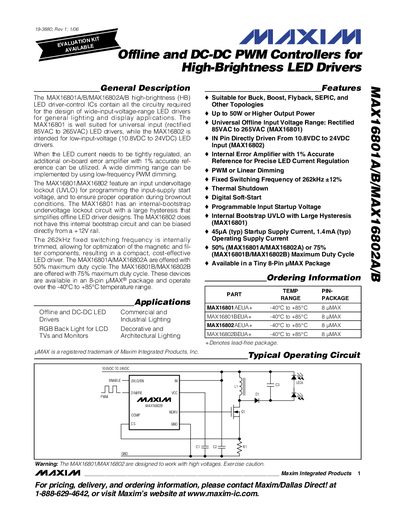

Maxim MAX16801A/B and MAX16802A/B LED Driver Datasheet
The MAX16801A/B and MAX16802A/B are high‑brightness LED driver‑control ICs designed for universal‑input (85 VAC‑265 VAC) and low‑input (10.8 VDC‑24 VDC) applications. They support buck, boost, flyback, SEPIC and other topologies, offering a fixed 262 kHz switching frequency and programmable duty cycles of 50 % or 75 %.
Key features include an internal error amplifier with 1 % accurate reference, UVLO/EN programmable input startup voltage, internal bootstrap UVLO (MAX16801 only), thermal shutdown at 130 °C, and a tiny 8‑pin UMAX package operating from –40 °C to +85 °C.
Maxim MAX16802A specifications
| Input Voltage Range (MAX16801) | Rectified 85 VAC to 265 VAC |
|---|---|
| Input Voltage Range (MAX16802) | 10.8 VDC to 24 VDC |
| Switching Frequency | 262 kHz (fixed) |
| Maximum Duty Cycle | 50 % (A versions) or 75 % (B versions) |
| Operating Temperature Range | -40 °C to +85 °C |
| Thermal Shutdown Temperature | 130 °C |
| Startup Supply Current (MAX16801) | 45 µA (quiescent) |
Source: Maxim MAX16801A/B and MAX16802A/B LED Driver Datasheet
All Maxim MAX16802A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What input voltage range does the MAX16801 support?
The MAX16801 works with a universal offline input voltage range of rectified 85 VAC to 265 VAC.
From: Maxim MAX16801A/B and MAX16802A/B LED Driver Datasheet
What is the maximum duty cycle for the MAX16801B version?
The MAX16801B version offers a maximum duty cycle of 75 %.
From: Maxim MAX16801A/B and MAX16802A/B LED Driver Datasheet
