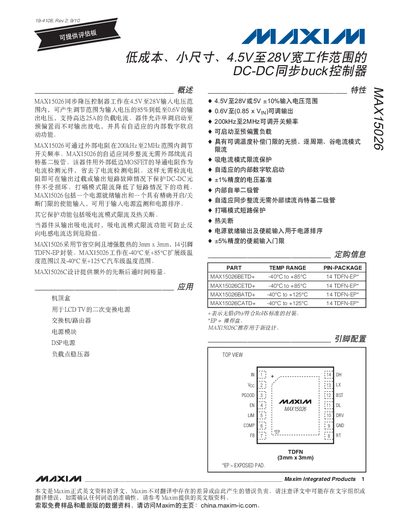

Maxim MAX15026 Datasheet
The MAX15026 is a synchronous step‑down regulator that operates from 4.5 V to 28 V input and can deliver up to 25 A of output current. It features an internal digital control loop, programmable switching frequency (200 kHz‑2 MHz) and a variety of protection functions such as over‑current, UVLO and thermal shutdown.
The device is supplied in a 14‑pin TDFN‑EP package and includes pins for enable, soft‑start, current limit, and a comparator network for precise voltage regulation. Detailed electrical characteristics, absolute maximum ratings and pin descriptions are provided for designers.
Maxim MAX15026 specifications
| Input Voltage Range | 4.5 V – 28 V |
|---|---|
| Maximum Output Current | 25 A |
| Switching Frequency Range | 200 kHz – 2 MHz |
| Quiescent Supply Current (typical) | 1.75 – 2.75 mA |
| Enable Input High Voltage | 1.14 – 1.26 V |
| Thermal‑Shutdown Threshold | +150 °C |
| Package | 14‑Pin TDFN‑EP |
Source: Maxim MAX15026 Datasheet
All Maxim MAX15026 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the MAX15026?
The regulator operates from 4.5 V up to 28 V input.
From: Maxim MAX15026 Datasheet
How much output current can the MAX15026 deliver?
It can supply up to 25 A of continuous output current.
From: Maxim MAX15026 Datasheet
What is the input voltage range of the MAX15026?
The MAX15026 operates with an input voltage from 4.5 V up to 28 V.
From: Maxim MAX15026 Datasheet
What switching frequency range does the MAX15026 support?
It supports a selectable switching frequency between 200 kHz and 2 MHz.
From: Maxim MAX15026 Datasheet
