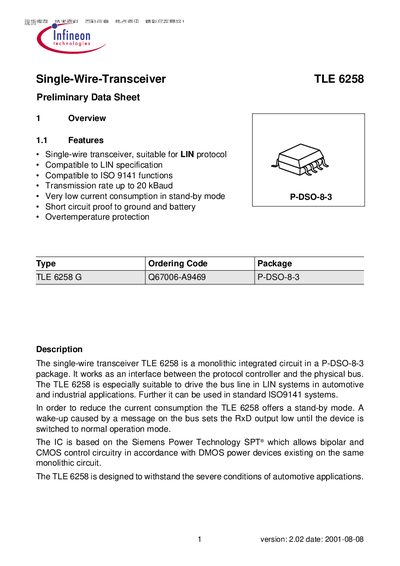

TLE 6258 is a single-wire transceiver suitable for LIN protocol and can also be used in standard ISO 9141 systems. It features low power consumption, short circuit protection, and is suitable for automotive and industrial applications.
The TLE 6258 is a single‑wire transceiver designed for LIN and ISO‑9141 protocols in automotive and industrial applications. It features low standby current, short‑circuit protection, and over‑temperature protection, and is supplied in a P‑DSO‑8‑3 package.
The document includes pin configuration, functional block diagram, recommended external components (1 kΩ termination resistor, series diode, 1 nF capacitor), and detailed electrical characteristics such as supply voltage ranges, current consumption in various modes, and absolute maximum ratings.
| Transmission rate | up to 20 kBaud |
|---|---|
| Supply voltage (Vcc) | 4.5 V – 5.5 V |
| Battery supply voltage (Vs) | 6 V – 20 V |
| Package type | P‑DSO‑8‑3 (plastic dual small outline) |
The device supports a transmission rate of up to 20 kBaud.
The device operates with a supply voltage (Vcc) of 4.5 V to 5.5 V and a battery supply voltage of 6 V to 20 V.
