Key facts
- Brand
- EXTECH
- Model
- EX840
- Industry
- Industrial
- Documents
- 3
- Languages
- EN
- Last added
- 2023-10-18
Start here

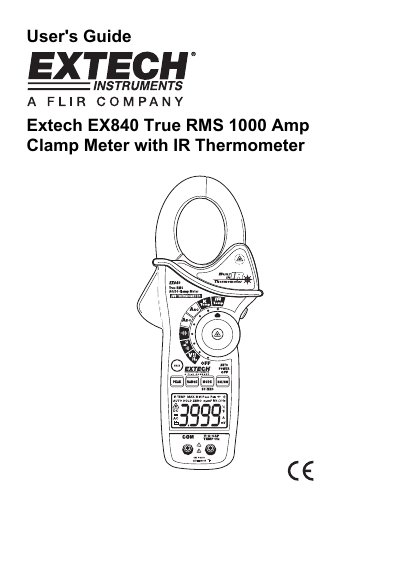

Extech EX840 True RMS 1000A Clamp Meter with IR Thermometer User's Guide
The Extech EX840 is a multi-function meter designed to measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test, Continuity, Type k thermocouple thermometer, and Non-Contact IR Temperature. The device features a backlit LCD display, data hold, min/max recording, and auto-range capabilities.
Read onlineEXTECH EX840 specifications
| Current Range | 1000A DC/AC |
|---|---|
| Voltage Range | 1000V DC/AC |
| Resistance Range | 250V DC/AC |
| Temperature Probe Range | -20 to 250°C |
| IR Spot to Distance Ratio | 8:1 |
Source: Extech EX840 True RMS 1000A Clamp Meter with IR Thermometer User's Guide
All EXTECH EX840 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum current measurement capability?
The meter can measure up to 1000A DC/AC.
From: Extech EX840 True RMS 1000A Clamp Meter with IR Thermometer User's Guide
Can the meter measure temperature without contact?
Yes, it includes a Non-Contact IR Temperature function.
From: Extech EX840 True RMS 1000A Clamp Meter with IR Thermometer User's Guide
What is the maximum current measurement range?
The meter can measure up to 1000A DC/AC.
From: Extech EX840 True RMS 1000 Amp Clamp Meter with IR Thermometer User's Guide
How do I perform a DC Zero measurement?
Select ADC, press the DC ZERO button with no conductor in the jaw, and hold the button until 'ZERO' disappears to exit.
From: Extech EX840 True RMS 1000 Amp Clamp Meter with IR Thermometer User's Guide
What is the NISTL designation on the EX840?
NISTL stands for Limited NIST for Certificate of Traceability to all functions except IR Thermometer.
From: Extech EX840-NISTL AC/DC True RMS Clamp Meter Product Leaflet
Does the EX840 include a laser pointer?
Yes, the built-in non-contact IR Thermometer includes a laser pointer.
From: Extech EX840-NISTL AC/DC True RMS Clamp Meter Product Leaflet
