The ADG5436 is a high voltage latch-up proof, dual SPDT switch. It is a monolithic CMOS device that contains two independently selectable single-pole/single-throw (SPDT) switches. This switch features low on resistance (<10 Ω), 8 kV HBM ESD rating, and is suitable for a variety of applications, including relay replacement, automatic test equipment, data acquisition, instrumentation, avionics, audio and video switching, and communication systems.
The ADG5436 is a monolithic CMOS dual SPDT analog switch with latch‑up protection and an 8 kV HBM ESD rating. It supports dual‑supply operation (+9 V to +22 V) or single‑supply operation up to 40 V, making it suitable for relay replacement, test equipment, avionics, audio/video switching, and other instrumentation applications.

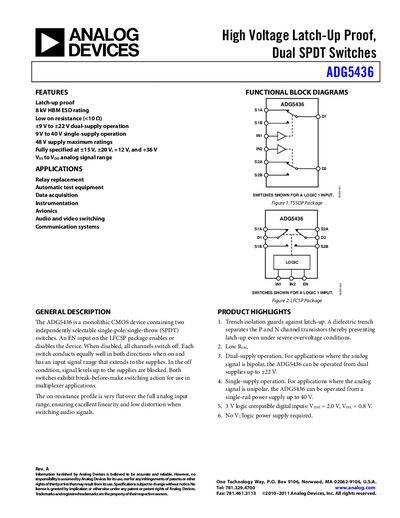

The document lists detailed electrical specifications, absolute maximum ratings, dynamic characteristics, and ordering information for both TSSOP and LFCSP packages. It also includes functional block diagrams, product highlights, and revision history for engineers and designers.
| On‑Resistance (Ron) typical | 9 Ω |
|---|---|
| Dual‑supply voltage range | +9 V to +22 V |
| Input low voltage (logic‑low) | 0.8 V max |
| Break‑Before‑Make time delay | 55 ns typical |
| ESD rating | 8 kV HBM |
The device can operate with dual supplies from +9 V up to +22 V.
The typical on‑resistance is about 9 Ω.
It has an 8 kV HBM ESD rating.
