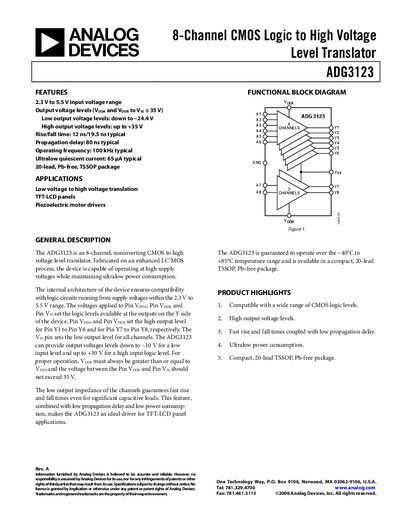

ADG3123 8-Channel CMOS Logic to High Voltage Level Translator Data Sheet
The ADG3123 is an 8-channel, noninverting CMOS to high voltage level translator fabricated on an enhanced LC2MOS process. It is designed to translate logic levels from a low voltage range (2.3 V to 5.5 V) to high voltage levels, making it suitable for applications such as TFT-LCD panels and piezoelectric motor drivers. The device maintains ultra-low power consumption while operating at high supply voltages.
Read onlineAnalog Devices ADG3123 specifications
| Input Voltage Range | 2.3 V to 5.5 V |
|---|---|
| Output Voltage Range | -24.2 V to +35 V |
| Operating Frequency | 100 kHz typical |
| Quiescent Current | 65 μA typical |
| Package | 20-lead TSSOP |
| Operating Temperature | -40°C to +85°C |
Source: ADG3123 8-Channel CMOS Logic to High Voltage Level Translator Data Sheet
All Analog Devices ADG3123 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the ADG3123?
The device is compatible with CMOS logic levels ranging from 2.3 V to 5.5 V.
From: ADG3123 8-Channel CMOS Logic to High Voltage Level Translator Data Sheet
What are the maximum output voltage levels?
The output voltage levels can range from -24.2 V to +35 V.
From: ADG3123 8-Channel CMOS Logic to High Voltage Level Translator Data Sheet
What is the input voltage range for the ADG3123?
The device accepts input voltages from 2.3 V to 5.5 V.
From: Analog Devices ADG3123 8‑Channel Level Translator Datasheet
What are the typical rise and fall times?
Typical rise time is 12 ns and fall time is 19.5 ns.
From: Analog Devices ADG3123 8‑Channel Level Translator Datasheet
What is the input voltage range for the ADG3123?
The device accepts input voltages from 2.3 V to 5.5 V.
What is the typical quiescent current of the ADG3123?
The typical quiescent current is 65 pA.
