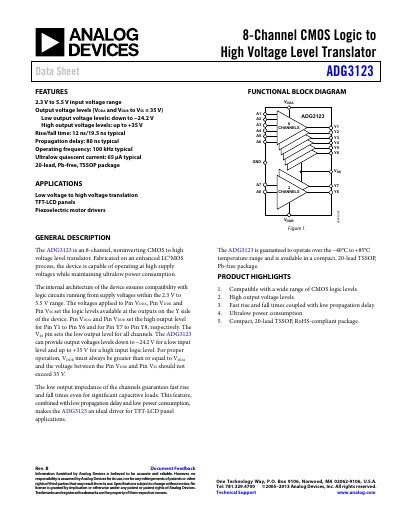

The ADG3123 is an 8-channel, noninverting CMOS to high voltage level translator. It has an input voltage range of 2.3V to 5.5V and output voltage levels from -24.2V to +35V. The rise/fall time is 12ns/19.5ns, propagation delay is 80ns, operating frequency is 100kHz, and the ultralow quiescent current is 65μA. This device is suitable for low voltage to high voltage translation applications such as TFT-LCD panels and piezoelectric motor drivers.
The ADG3123 is an 8-channel, noninverting CMOS to high voltage level translator fabricated on an enhanced LC2MOS process. It is designed to translate logic levels from a low voltage range (2.3 V to 5.5 V) to high voltage levels, making it suitable for applications such as TFT-LCD panels and piezoelectric motor drivers. The device maintains ultra-low power consumption while operating at high supply voltages.
| Input Voltage Range | 2.3 V to 5.5 V |
|---|---|
| Output Voltage Range | -24.2 V to +35 V |
| Operating Frequency | 100 kHz typical |
| Quiescent Current | 65 μA typical |
| Package | 20-lead TSSOP |
| Operating Temperature | -40°C to +85°C |
The device is compatible with CMOS logic levels ranging from 2.3 V to 5.5 V.
The output voltage levels can range from -24.2 V to +35 V.
The typical operating frequency is 100 kHz.
