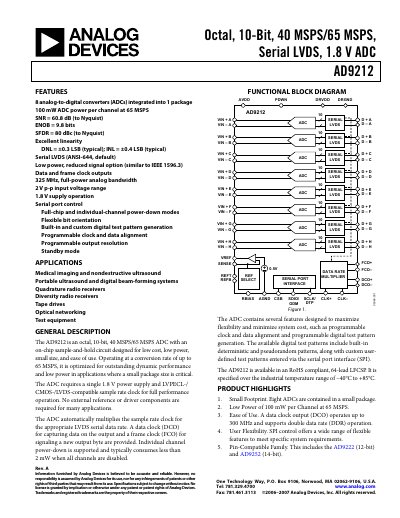

AD9212 is an Octal, 10-Bit, 40 MSPS/65 MSPS, Serial LVDS, 1.8 V ADC from Analog Devices.
The AD9212 is an octal, 10‑bit analog‑to‑digital converter that operates up to 65 MSPS with a single 1.8 V supply. It offers low power consumption, high dynamic performance, and a small 64‑lead LFCSP package, making it suitable for compact, high‑speed applications.
Key specifications include 100 mW power per channel at 65 MSPS, 325 MHz analog bandwidth, 2 V p‑p differential input range, and LVDS serial output. The device supports flexible SPI control, programmable clock and data alignment, and multiple digital test patterns, and is offered in several temperature‑rated and packaging options.
| Resolution | 10 Bits |
|---|---|
| Power per channel | 100 mW at 65 MSPS |
| Analog bandwidth (full power) | 325 MHz |
| Differential input voltage range | 2 V p‑p |
| Maximum clock rate | 65 MSPS |
| Supply voltage (AVDD/DRVDD) | 1.8 V |
The AD9212 consumes 100 mW per channel when operating at 65 MSPS.
The AD9212 offers a full‑power analog bandwidth of 325 MHz.
