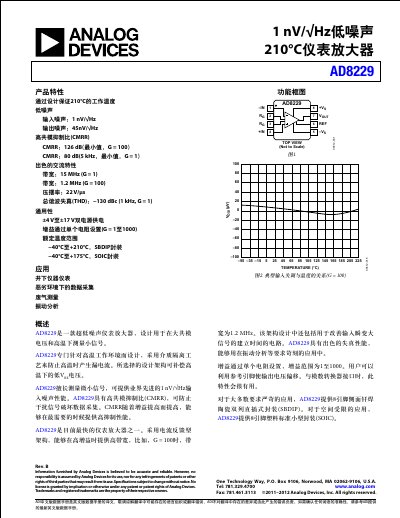

Analog Devices AD8229 Instrumentation Amplifier Datasheet
The AD8229 is a low-noise instrumentation amplifier designed for measuring small signals in high common-mode voltage and high-temperature environments. It features industry-leading 1 nV/√Hz input noise performance and a high common-mode rejection ratio (CMRR) that improves with gain. The device is specifically engineered for harsh environments, such as downhole instrumentation and exhaust gas measurement, utilizing a dielectric isolation process to prevent leakage currents at elevated temperatures.
The amplifier supports a wide operating temperature range of -40°C to +210°C for SBDIP packages and -40°C to +175°C for SOIC packages. It offers a gain range from 1 to 1000 set by a single external resistor and includes a reference pin for output level shifting. The document provides comprehensive electrical specifications, absolute maximum ratings, typical performance characteristics, and application guidelines. This manual is written in Chinese.
Analog Devices AD8229 specifications
| Input Noise Voltage Density | 1 nV/√Hz |
|---|---|
| Output Noise Voltage Density | 45 nV/√Hz |
| Common-Mode Rejection Ratio (G=100) | 126 dB |
| Bandwidth (G=1) | 15 MHz |
| Bandwidth (G=100) | 1.2 MHz |
| Slew Rate | 22 V/µs |
| Operating Temperature (SBDIP) | -40°C to +210°C |
| Operating Temperature (SOIC) | -40°C to +175°C |
| Gain Range | 1 to 1000 |
| Supply Voltage Range | ±4 V to ±17 V |
Source: Analog Devices AD8229 Instrumentation Amplifier Datasheet
All Analog Devices AD8229 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input noise density of the AD8229?
The AD8229 has an input noise density of 1 nV/√Hz.
From: Analog Devices AD8229 Instrumentation Amplifier Datasheet
What is the maximum operating temperature for the SBDIP package?
The SBDIP package is rated for operation from -40°C to +210°C.
From: Analog Devices AD8229 Instrumentation Amplifier Datasheet
What is the maximum operating temperature for the AD8229-KGD?
The device is designed for operation up to +210°C.
From: Analog Devices AD8229-KGD Low Noise Instrumentation Amplifier Datasheet
How is the gain of the amplifier set?
Gain is set using a single external resistor, with a range from 1 to 1000.
From: Analog Devices AD8229-KGD Low Noise Instrumentation Amplifier Datasheet
