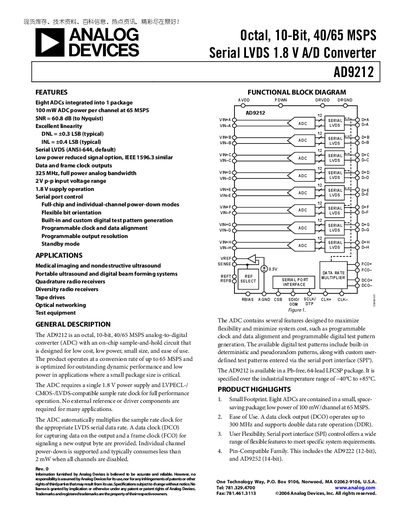

AD9212 is an Octal, 10-Bit, 40/65 MSPS Serial LVDS 1.8 V A/D Converter with excellent linearity, low power. It is widely used in medical imaging and nondestructive ultrasound, portable ultrasound and digital beam forming systems, quadrature radio receiver etc.
The AD9212 integrates eight 10‑bit ADC channels in a compact 64‑lead LFCSP package. It operates from a single 1.8 V supply and provides serial LVDS output with programmable clock and data alignment. The device offers low power consumption (100 mW per channel at 65 MSPS) and includes flexible features such as individual channel power‑down, standby mode, and built‑in digital test pattern generation.
The datasheet details performance metrics including a maximum analog bandwidth of 325 MHz, SNR of 60.8 dB, and input voltage range of 2 V p‑p. Electrical specifications cover power supply currents, clock rates (10‑65 MSPS), and timing parameters. Ordering information and package dimensions are also provided.
| Resolution | 10 bits |
|---|---|
| Maximum Sample Rate | 65 MSPS |
| Power per Channel | 100 mW |
| Input Voltage Range | 2 V p‑p differential |
| Signal‑to‑Noise Ratio | 60.8 dB |
| Supply Voltage | 1.8 V |
| Package | 64‑lead LFCSP |
The AD9212 operates from a single 1.8 V power supply.
Eight ADC channels are integrated into one package.
The device provides a full‑power analog bandwidth of 325 MHz.
Each channel consumes about 100 mW at 65 MSPS.
