Start here

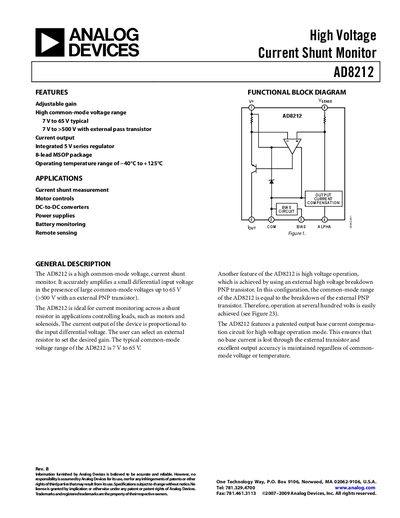

Analog Devices AD8212 High Voltage Current Shunt Monitor Data Sheet
The AD8212 is a high common-mode voltage current shunt monitor that accurately amplifies small differential input voltages in the presence of large common-mode voltages up to 65 V, or greater than 500 V with an external pass transistor. It features an integrated 5 V series regulator and an adjustable gain set by an external resistor, making it ideal for current monitoring across shunt resistors in applications controlling loads like motors and solenoids.
The device operates with a supply voltage range of 7 V to 65 V in normal mode, with a typical common-mode voltage range of 7 V to 65 V. For high-voltage applications, an external PNP transistor extends the common-mode range to over 500 V. The output current is proportional to the input differential voltage and can be converted to a voltage using an external resistor.
Analog Devices AD8212 specifications
| Supply Voltage (Normal Operation) | 7 V to 65 V |
|---|---|
| Operating Temperature Range | -40°C to +125°C |
| Input Impedance (Differential) | 2 kΩ |
| Transconductance | 1000 µA/V |
| PSRR | 80 dB |
Source: Analog Devices AD8212 High Voltage Current Shunt Monitor Data Sheet
All Analog Devices AD8212 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical common-mode voltage range of the AD8212?
The typical common-mode voltage range is 7 V to 65 V.
From: Analog Devices AD8212 High Voltage Current Shunt Monitor Data Sheet
How can the AD8212 operate at voltages over 65 V?
Operation at several hundred volts is achieved by using an external high voltage breakdown PNP transistor.
From: Analog Devices AD8212 High Voltage Current Shunt Monitor Data Sheet
What supply voltage range does the AD8212 support without an external transistor?
The AD8212 operates from 7 V to 65 V when no external pass transistor is used.
How can the AD8212 be used for high‑voltage applications?
By adding an external high‑voltage breakdown PNP transistor, the common‑mode range can be extended to over 500 V.
What supply voltage range does the AD8212 support in normal operation?
The AD8212 operates with a supply voltage from 7 V to 65 V when no external pass transistor is used.
From: Analog Devices AD8212 High Voltage Current Shunt Monitor Datasheet
How can the AD8212 be used for high‑voltage applications?
By adding an external high‑voltage breakdown PNP transistor, the common‑mode range can be extended to over 500 V.
From: Analog Devices AD8212 High Voltage Current Shunt Monitor Datasheet
