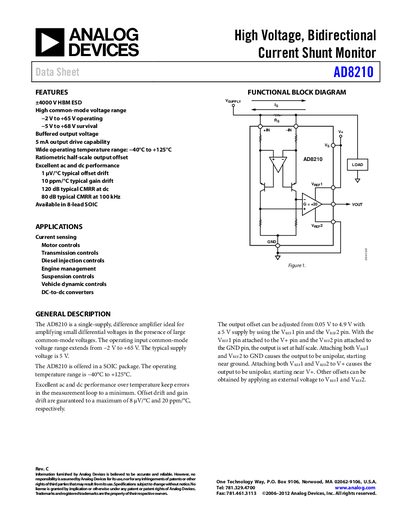

Analog Devices AD8210 High Voltage Current Shunt Monitor Datasheet
The AD8210 is a single‑supply difference amplifier designed for precise current sensing in high‑voltage environments. It operates from a 5 V supply and supports a common‑mode voltage range of –2 V to +65 V, making it suitable for motor control, engine management, and DC‑DC converters.
The device offers a 20 V/V gain, low offset drift (8 µV/°C), and a selectable output offset from 0.05 V to 4.9 V via the Vrerl and Vrer2 pins. Its specifications include a 450 kHz –3 dB bandwidth, 3 V/µs slew rate, and robust ESD protection (+4000 V HBM).
Analog Devices AD8210 specifications
| Gain (Initial) | 20 V/V |
|---|---|
| Offset Voltage (RTI) | +1.0 mV |
| Input Impedance (Differential) | 2 kΩ |
| Common‑Mode Input Voltage Range | –2 V to +65 V |
| Operating Temperature Range | –40 °C to +125 °C |
| Supply Voltage Range | 4.5 V to 5.5 V |
| Quiescent Current (Typical) | 2 mA |
| Small‑Signal –3 dB Bandwidth | 450 kHz |
| Slew Rate | 3 V/µs |
| Power Supply Rejection Ratio | 80 dB |
Source: Analog Devices AD8210 High Voltage Current Shunt Monitor Datasheet
All Analog Devices AD8210 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD8210?
The AD8210 operates from –40 °C to +125 °C.
From: Analog Devices AD8210 High Voltage Current Shunt Monitor Datasheet
What supply voltage range does the AD8210 require?
It requires a supply voltage between 4.5 V and 5.5 V.
From: Analog Devices AD8210 High Voltage Current Shunt Monitor Datasheet
What is the typical supply voltage for the AD8210?
The typical supply voltage is 5 V.
From: Analog Devices AD8210 High Voltage Current Shunt Monitor Datasheet
What input common‑mode voltage range does the AD8210 support?
The input common‑mode voltage range extends from –2 V to +65 V.
From: Analog Devices AD8210 High Voltage Current Shunt Monitor Datasheet
