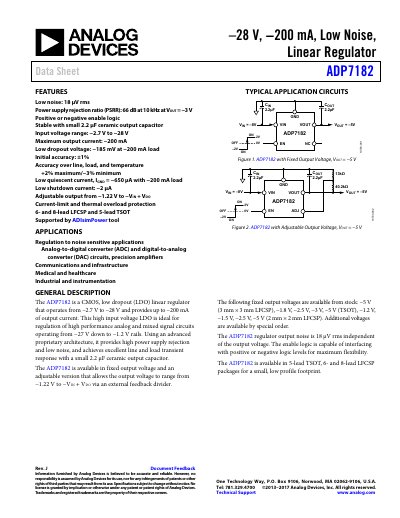

Analog Devices ADP7182 Low Noise Linear Regulator Data Sheet
The ADP7182 is a high input voltage LDO ideal for regulating high performance analog and mixed signal circuits operating from negative rails down to -1.2 V. It features low noise (18 μV rms) and high power supply rejection ratio, achieving excellent line and load transient response with a small 2.2 μF ceramic output capacitor.
The device is available in fixed output voltage versions (-5 V, -1.8 V, -2.5 V, -3 V, etc.) and an adjustable version allowing the output to range from -1.22 V to -V IN + V DO via an external feedback divider. It supports positive or negative enable logic for maximum flexibility.
Analog Devices ADP7182 specifications
| Input Voltage Range | -2.7 V to -28 V |
|---|---|
| Maximum Output Current | -200 mA |
| Output Noise (Fixed) | 18 μV rms |
| Power Supply Rejection Ratio | 66 dB at 10 kHz |
| Dropout Voltage | -185 mV at -200 mA load |
| Quiescent Current | -650 μA with -200 mA load |
| Shutdown Current | -2 μA |
Source: Analog Devices ADP7182 Low Noise Linear Regulator Data Sheet
