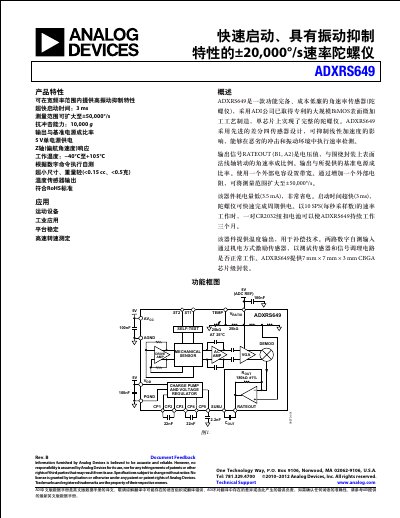

Analog Devices ADXRS649 Rate Gyroscope Datasheet
Datasheet 12 pages · 476 KB · ZH
The ADXRS649 is a complete, low-cost rate gyroscope manufactured using Analog Devices' patented BiMOS surface micromachining process. It features high vibration rejection, an ultra-fast 3 ms start-up time, and a wide measurement range of ±20,000°/s (expandable to ±50,000°/s). The device operates on a single 5 V supply with low power consumption. This manual is written in Chinese.
Read onlineAnalog Devices ADXRS649 specifications
| Operating Temperature | -40°C to +105°C |
|---|---|
| Supply Voltage | 4.75 V to 5.25 V |
| Static Supply Current | 3.5 mA |
| Startup Time | 3 ms |
| Shock Resistance | 10,000 g |
All Analog Devices ADXRS649 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the startup time of the ADXRS649?
The device has an ultra-fast start-up time of 3 ms.
Can the measurement range be expanded?
Yes, by adding an external resistor, the range can be extended to ±50,000°/s.
What is the operating temperature range?
The sensor is rated for operation from –40°C to +105°C.
How much current does the ADXRS649 draw in standby?
The quiescent supply current is 3.5 mA.
