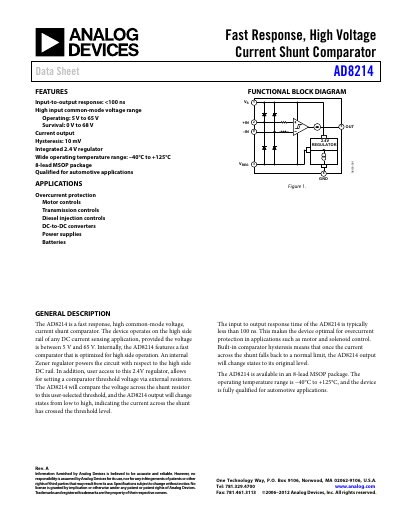

Analog Devices AD8214 Data Sheet
The AD8214 is a high‑side current shunt comparator that operates from 5 V to 65 V supply voltage. It features a fast <100 ns input‑to‑output response, an internal 2.4 V regulator, and built‑in 10 mV hysteresis for reliable over‑current detection.
The device is supplied in an 8‑lead MSOP package, qualified for automotive use, and offers specifications such as 2 MΩ differential input impedance, ±30 nA input bias current, and output currents up to 1.2 mA. Detailed pin functions, performance curves, and application examples are provided in the datasheet.
Analog Devices AD8214 specifications
| Supply Voltage Range | 5 V to 65 V |
|---|---|
| Input Common‑Mode Voltage Range | 5 V to 65 V |
| Input Differential Impedance | 2 MΩ |
| Input Bias Current | ±30 nA |
| Operating Temperature Range | -40 °C to +125 °C |
Source: Analog Devices AD8214 Data Sheet
All Analog Devices AD8214 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input‑to‑output response time of the AD8214?
The input‑to‑output response time is typically less than 100 ns.
Is the AD8214 qualified for automotive applications?
Yes, the AD8214 is qualified for automotive applications.
What is the input‑to‑output response time of the AD8214?
The typical response time is less than 100 ns.
From: Analog Devices AD8214 High‑Voltage Threshold Detector Datasheet
What hysteresis voltage does the AD8214 provide?
The device includes a hysteresis of 10 mV.
From: Analog Devices AD8214 High‑Voltage Threshold Detector Datasheet
