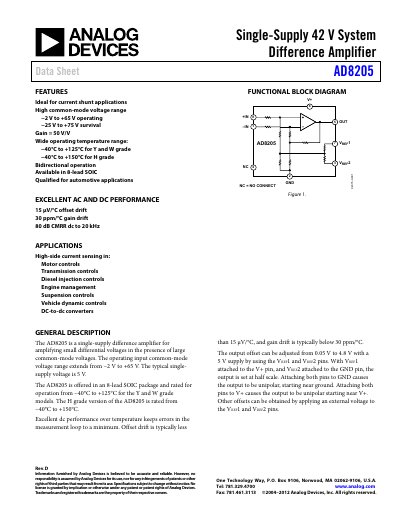

Analog Devices AD8205 Data Sheet
The AD8205 is a single‑supply difference amplifier designed for high‑side current‑sense applications. It offers a wide common‑mode voltage range (‑2 V to +65 V), a fixed gain of 50 V/V, and excellent AC/DC performance with low offset drift and high CMRR.
Typical uses include motor‑control current sensing, diesel‑injection control, and H‑bridge motor control. The device can be configured for unidirectional, ground‑referenced, V+‑referenced, or bidirectional operation by adjusting the VREF pins, and automotive‑qualified versions are available.
Analog Devices AD8205 specifications
| Gain | 50 V/V |
|---|---|
| Input common‑mode voltage range | ‑2 V to +65 V |
| Operating temperature range (Y/W grade) | ‑40 °C to +125 °C |
| Operating temperature range (H grade) | ‑40 °C to +150 °C |
| Supply voltage range | 4.5 V to 10 V (absolute max 12.5 V) |
| Quiescent current | < 2 mA |
| Offset drift | 15 µV/°C |
Source: Analog Devices AD8205 Data Sheet
All Analog Devices AD8205 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply voltage for the AD8205?
The typical single‑supply voltage is 5 V.
How can the output offset be adjusted?
By applying voltage to the VREF1 and VREF2 pins, the output can be set anywhere from 0.05 V to 4.8 V.
What is the typical gain of the AD8205?
The AD8205 provides a fixed gain of 50 V/V.
How can the output offset be adjusted?
The output offset can be set between 0.05 V and 4.8 V (with a 5 V supply) by applying voltages to the Vrerl and Vrer2 pins.
