Start here

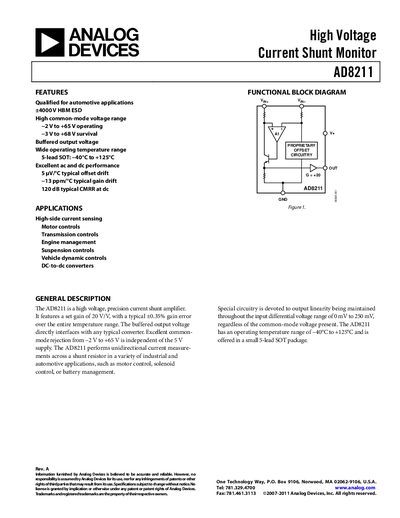

Analog Devices AD8211 High Voltage Current Shunt Monitor Datasheet Rev A
The AD8211 is a high‑voltage, precision current shunt amplifier designed for automotive and industrial applications. It offers a fixed gain of 20 V/V, buffered output, and a wide common‑mode voltage range of –2 V to +65 V, making it suitable for high‑side current sensing in motor control, transmission, and engine management systems.
The document lists detailed electrical specifications, absolute maximum ratings, pin configurations, and typical performance characteristics such as a 500 kHz –3 dB bandwidth, 120 dB typical CMRR, and operation over –40 °C to +125 °C. It also includes application notes and revision history for the product.
Analog Devices AD8211 specifications
| Gain | 20 V/V |
|---|---|
| Operating Temperature Range | -40 °C to +125 °C |
| Supply Voltage Operating Range | 4.5 V to 5.5 V |
| Common‑Mode Input Voltage Range | -2 V to +65 V |
| Typical CMRR | 120 dB |
| Small‑Signal –3 dB Bandwidth | 500 kHz |
Source: Analog Devices AD8211 High Voltage Current Shunt Monitor Datasheet Rev A
All Analog Devices AD8211 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the gain of the AD8211?
The AD8211 has a fixed gain of 20 V/V.
From: Analog Devices AD8211 High Voltage Current Shunt Monitor Datasheet Rev A
What temperature range can the AD8211 operate in?
It operates from –40 °C to +125 °C.
From: Analog Devices AD8211 High Voltage Current Shunt Monitor Datasheet Rev A
What is the gain of the AD8211?
The AD8211 has a fixed gain of 20 V/V.
From: Analog Devices AD8211 High Voltage Current Shunt Monitor Datasheet
What temperature range can the AD8211 operate in?
It operates from –40 °C to +125 °C.
From: Analog Devices AD8211 High Voltage Current Shunt Monitor Datasheet
