Start here

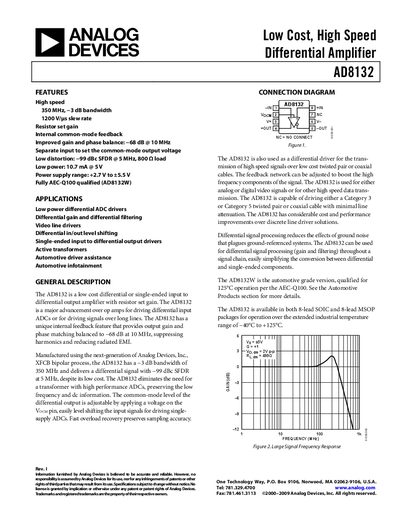

Analog Devices AD8132 Datasheet Handbook
The AD8132 is a low‑cost, high‑speed differential (or single‑ended) input to differential output amplifier with resistor‑set gain. It offers a 350 MHz –3 dB bandwidth, 1200 V/µs slew rate, and internal common‑mode feedback that provides -68 dB gain and phase balance at 10 MHz. The device is suited for differential ADC drivers, video line drivers, automotive driver assistance, and other high‑speed signal‑transmission applications.
The datasheet provides detailed specifications, including power‑supply range (+2.7 V to +5.5 V), operating temperature range (‑40 °C to +125 °C), output current up to 70 mA, and input resistance of 12 MΩ. An automotive‑grade version, the AD8132W, is AEC‑Q100 qualified for 125 °C operation. Package options include 8‑lead SOIC and 8‑lead MSOP.
Analog Devices AD8132 specifications
| Large‑signal bandwidth (‑3 dB) | 350 MHz |
|---|---|
| Slew rate | 1200 V/µs |
| Power‑supply range | +2.7 V to +5.5 V |
| Operating temperature range | ‑40 °C to +125 °C |
| Output current | 70 mA |
| Input resistance (differential) | 12 MΩ |
All Analog Devices AD8132 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the large‑signal bandwidth of the AD8132?
The AD8132 has a –3 dB large‑signal bandwidth of 350 MHz.
What power‑supply voltage range does the AD8132 support?
It operates from +2.7 V up to +5.5 V.
What is the bandwidth of the AD8132?
The AD8132 has a –3 dB large‑signal bandwidth of 350 MHz.
From: Analog Devices AD8132 Differential Amplifier Datasheet
What supply voltage range does the AD8132 support?
It operates from +2.7 V up to +5.5 V.
From: Analog Devices AD8132 Differential Amplifier Datasheet
What supply voltage range does the AD8132 support?
It operates from +2.7 V up to +5.5 V.
From: Analog Devices AD8132 Differential Amplifier Datasheet
How much quiescent current does the AD8132 draw at 5 V?
The device draws about 10.7 mA at a 5 V supply.
From: Analog Devices AD8132 Differential Amplifier Datasheet
