Start here

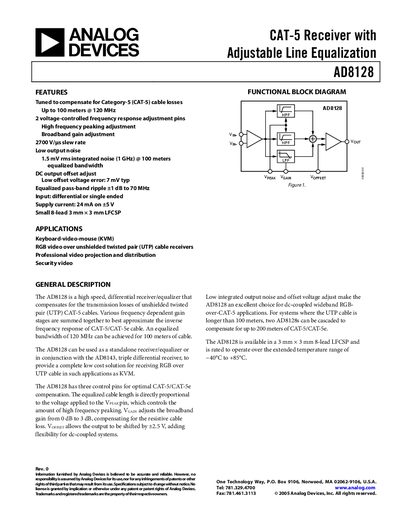

ANALOG DEVICES AD8322 English products handbook AD8128 English products handbook
The AD8128 is a high‑speed differential receiver/equalizer designed to compensate for the transmission losses of unshielded twisted‑pair (UTP) CAT‑5 cables up to 100 m. It provides adjustable line equalization, broadband gain, and DC offset control for applications such as KVM, RGB video over UTP, professional video distribution, and security video.
The datasheet includes functional block diagrams, pin descriptions, typical performance curves, absolute maximum ratings, thermal resistance data, layout guidelines, and an ordering guide for the 8‑lead 3 mm × 3 mm LFCSP package. It also describes cascaded configurations for extending equalization to 200 m and lists available evaluation boards.
Analog Devices AD8128 specifications
| Supply Current (quiescent) | 24 mA @ +5 V |
|---|---|
| Operating Voltage Range | +4.5 V to +5.5 V |
| Temperature Range (operating) | -40 °C to +85 °C |
| Package | 8‑lead 3 mm × 3 mm LFCSP |
Source: ANALOG DEVICES AD8322 English products handbook AD8128 English products handbook
All Analog Devices AD8128 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the purpose of the AD8128?
The AD8128 is a high‑speed differential receiver/equalizer that compensates for the transmission losses of CAT‑5/UTP cables.
From: ANALOG DEVICES AD8322 English products handbook AD8128 English products handbook
How can the AD8128 be used for longer cable runs?
Two AD8128 devices can be cascaded to provide equalization for up to 200 m of CAT‑5 cable.
From: ANALOG DEVICES AD8322 English products handbook AD8128 English products handbook
What is the maximum cable length the AD8128 can equalize?
It can equalize up to 100 meters of CAT‑5 cable while maintaining a 120 MHz bandwidth.
How can longer cable distances be supported?
Two AD8128 devices can be cascaded to provide equalization for up to 200 meters of CAT‑5 cable.
