Start here

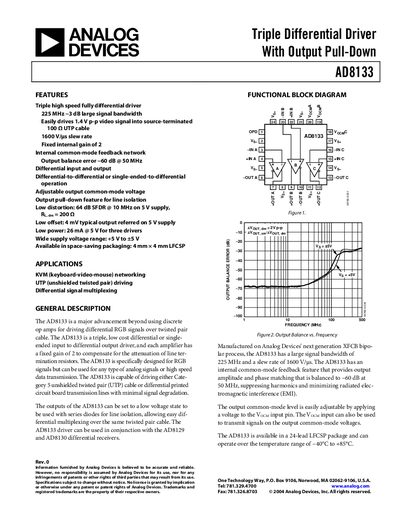

Analog Devices AD8133 Triple Differential Driver Product Handbook
The AD8133 is a triple, high‑speed differential driver designed for RGB video and other high‑speed analog signals. It provides a fixed gain of 2, output pull‑down capability, and adjustable common‑mode voltage, making it suitable for KVM and UTP networking applications.
Key features include a 225 MHz large‑signal bandwidth, 1600 V/µs slew rate, -60 dB output‑balance error at 50 MHz, and operation from a +4.5 V to +6 V supply. The device is offered in a 24‑lead LFCSP package and includes detailed guidelines for layout, power‑supply decoupling, and thermal management.
Analog Devices AD8133 specifications
| Large Signal Bandwidth | 225 MHz |
|---|---|
| Slew Rate | 1600 V/µs |
| Fixed Internal Gain | 2 |
| Output Balance Error | -60 dB @ 50 MHz |
| Operating Supply Range | +4.5 V to +6 V |
| Quiescent Current | 28–29 mA |
| Package | 24‑Lead LFCSP (CP‑24) |
Source: Analog Devices AD8133 Triple Differential Driver Product Handbook
All Analog Devices AD8133 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the large‑signal bandwidth of the AD8133?
The AD8133 provides a 225 MHz large‑signal bandwidth (‑3 dB).
From: Analog Devices AD8133 Triple Differential Driver Product Handbook
How is the output common‑mode voltage set?
The output common‑mode voltage is set by applying a voltage to the Vocm input pin.
From: Analog Devices AD8133 Triple Differential Driver Product Handbook
