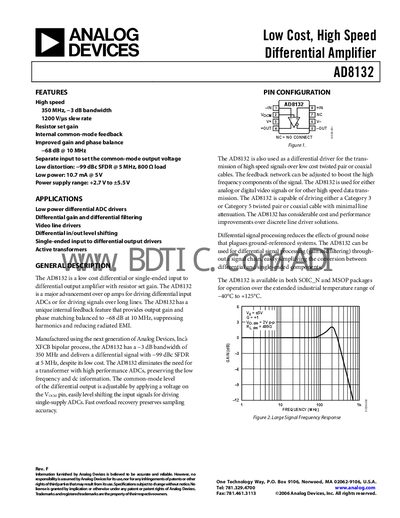

The AD8132 is a low-cost, high-speed differential amplifier with a bandwidth of 350 MHz and a slew rate of 1200 V/μs. It features internal common-mode feedback, improved gain and phase balance, low distortion, and low power consumption.
The AD8132 is a differential amplifier that can be used with either differential or single‑ended inputs and provides resistor‑set gain. It offers a –3 dB bandwidth of 350 MHz, a slew rate of up to 1200 V/s, and low power consumption of 10.7 mA at 5 V. The device includes internal common‑mode feedback, adjustable common‑mode output voltage, and high CMRR, making it suitable for driving ADCs, video lines, and high‑speed data transmission.
The datasheet includes pin configurations for SOIC‑N and MSOP packages, absolute maximum ratings, thermal resistance data, ESD precautions, and detailed specifications for dynamic performance, noise, and DC characteristics. It also provides application examples such as low‑power differential ADC drivers, video line drivers, and active transformers.
| Power Supply Range | +2.7 V to +5.5 V |
|---|---|
| Quiescent Current (5 V supply) | 10.7 mA |
The device operates from +2.7 V up to +5.5 V.
It draws about 10.7 mA of quiescent current when powered at 5 V.
