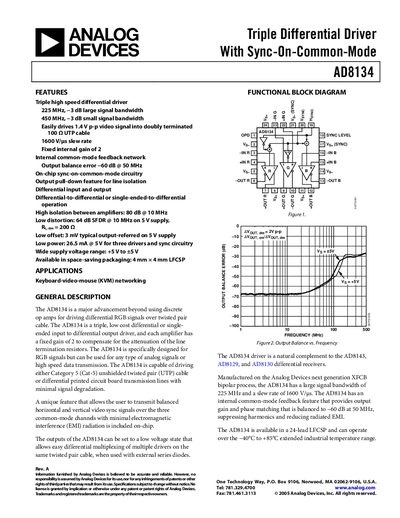

Analog Devices AD8134 Datasheet Rev A
The AD8134 is a triple high‑speed differential driver with a fixed internal gain of 2, designed for RGB video and other high‑speed analog signals. It features on‑chip sync‑on‑common‑mode circuitry, output pull‑down for line isolation, and high isolation between amplifiers.
The document includes detailed specifications such as bandwidth, slew rate, supply voltage range, and thermal characteristics, as well as pin descriptions, typical performance graphs, ordering information, and mechanical dimensions for the 24‑lead LFCSP package.
Analog Devices AD8134 specifications
| Small‑signal bandwidth (‑3 dB) | 450 MHz |
|---|---|
| Large‑signal bandwidth (‑3 dB) | 225 MHz |
| Slew rate | 1600 V/µs |
| Supply voltage operating range | +4.5 V to +6 V |
| Quiescent current | 31‑33 mA |
| Output balance error at 50 MHz | -60 dB |
| Isolation between amplifiers | 80 dB at 10 MHz |
| Operating temperature range | -40 °C to +85 °C |
All Analog Devices AD8134 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the AD8134?
The AD8134 operates from +4.5 V to +6 V.
What is the maximum small‑signal bandwidth of the AD8134?
The small‑signal bandwidth (‑3 dB) is 450 MHz.
What is the power‑supply operating range for the AD8134?
The device operates from +4.5 V to +6 V.
What is the small‑signal bandwidth of the AD8134?
The 3 dB small‑signal bandwidth is 450 MHz.
