Start here

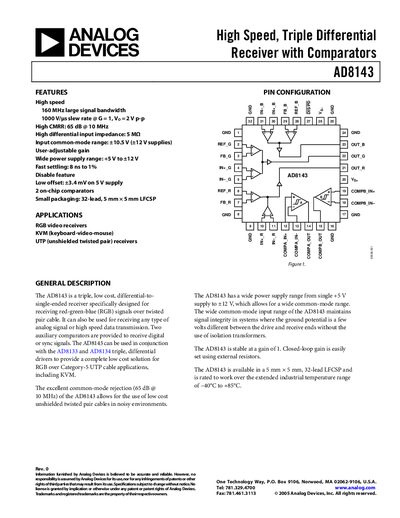

Analog Devices AD8143 Datasheet Rev 0
The AD8143 is a triple, low‑cost differential‑to‑single‑ended receiver designed for RGB video over unshielded twisted‑pair cable. It includes two on‑chip comparators for digital or sync signals and offers a wide power‑supply range from +5 V to +12 V.
The device is supplied in a 32‑lead LFCSP package, operates from –40 °C to +85 °C, and provides detailed specifications for bandwidth, slew rate, settling time, and input offset voltage.
Analog Devices AD8143 specifications
| Slew Rate (typ) | 1000 V/µs |
|---|---|
| Settling Time (1 % typ) | 8 ns |
| Input Offset Voltage (typ) | 43 mV |
| Quiescent Current, Positive Supply (typ) | 57.5 mA |
| Power‑Supply Operating Range | 4.5 V – 24 V |
| Package | 32‑lead LFCSP (5 mm × 5 mm) |
All Analog Devices AD8143 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What power‑supply range does the AD8143 support?
It operates from a single supply of 4.5 V up to 24 V.
What package is the AD8143 offered in?
The device is available in a 32‑lead lead‑frame chip‑scale package (LFCSP) measuring 5 mm × 5 mm.
What supply voltage range does the AD8143 support?
The device operates from a single supply of +5 V up to +12 V.
How much quiescent current does the AD8143 draw?
Typical quiescent current on the positive supply is about 57.5 mA.
