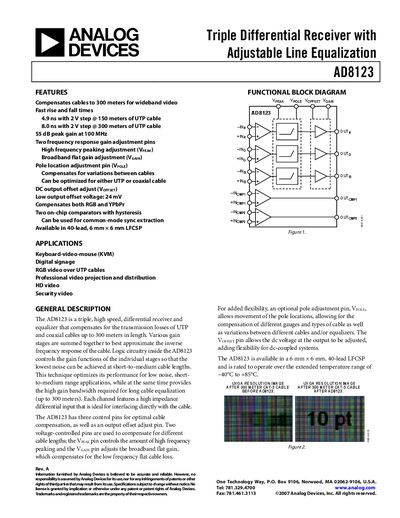

Analog Devices AD8123 Datasheet
The AD8123 is a high‑speed triple differential receiver with adjustable line equalization. It compensates cable losses for UTP and coaxial cables up to 300 m, offering up to 55 dB peak gain at 100 MHz and fast 4.9 ns rise/fall times for 150 m of Cat‑5 cable. The device includes three cable‑compensation pins and an output‑offset adjust pin, allowing optimization for either UTP or coaxial cable.
The part is supplied in a 6 mm × 6 mm 40‑lead LFCSP package and operates from a +4.5 V to +5.5 V supply. Key specifications include a peak gain of 55 dB, a maximum differential output swing of 4 V p‑p, and an operating temperature range of –40 °C to +85 °C.
Analog Devices AD8123 specifications
| Positive Quiescent Supply Current | 132 mA |
|---|---|
| Input Voltage Range | +3.0 V |
| Maximum Differential Voltage Swing | 4 V p‑p |
Source: Analog Devices AD8123 Datasheet
All Analog Devices AD8123 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What cable length can the AD8123 compensate?
It compensates transmission losses of UTP and coaxial cables up to 300 meters.
How many control pins does the AD8123 have?
The device has three cable‑compensation pins and an additional output‑offset adjust pin.
What cable lengths can the AD8123 compensate?
It can compensate UTP or coaxial cables up to 300 meters in length.
From: Analog Devices AD8123 Triple Differential Receiver Datasheet
What is the typical rise time for a 2 V step over 150 m of Cat‑5?
The typical rise/fall time is 4.9 ns.
From: Analog Devices AD8123 Triple Differential Receiver Datasheet
