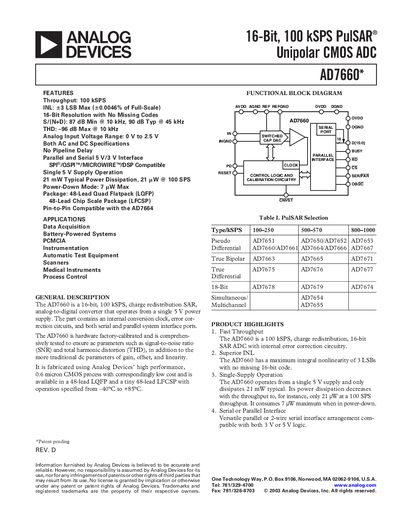

Analog Devices AD7660 Datasheet Rev D
The AD7660 from Analog Devices is a 16‑bit, charge‑redistribution SAR analog‑to‑digital converter that operates from a single 5 V supply. It offers 100 kSPS throughput, internal error‑correction, and both parallel and serial interfaces compatible with 3 V or 5 V logic.
The device is supplied in a 48‑lead LQFP or a 48‑lead LFCSP package and is rated for operation from –40 °C to +85 °C. It is intended for data‑acquisition, instrumentation, medical instruments, and other high‑speed measurement applications.
Analog Devices AD7660 specifications
| Resolution | 16 bits |
|---|---|
| Throughput | 100 kSPS |
| Typical Power Dissipation | 21 mW |
| Maximum INL | +3 LSB |
| SNR (10 kHz) | 87 dB min |
