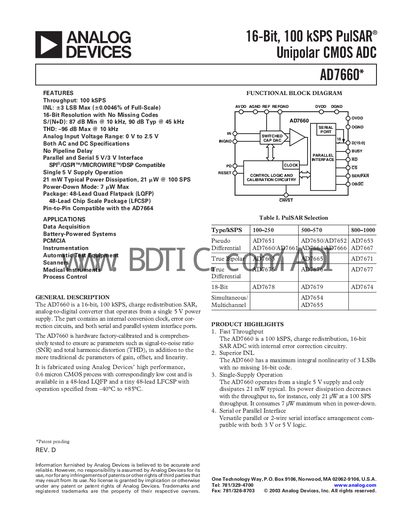

The AD7660 is a 16-bit, 100 kSPS PulSAR ® unipolar CMOS ADC.
The AD7660 is a 16‑bit, 100 kSPS charge‑redistribution SAR analog‑to‑digital converter that operates from a single 5 V supply. It offers internal conversion clock, error‑correction circuitry, and flexible parallel or 2‑wire serial interfaces compatible with 3 V or 5 V logic.
Typical applications include data acquisition, battery‑powered systems, PCMCIA, instrumentation, scanning, and process control. The device is available in a 48‑lead LQFP (ST‑48) or a 48‑lead chip‑scale package (CP‑48).
| Resolution | 16 bits |
|---|---|
| Maximum Throughput | 100 kSPS |
| Supply Voltage | Single 5 V |
| Analog Input Voltage Range | 0 V to 2.5 V |
| Integral Nonlinearity (INL) | ±3 LSB max |
| Signal‑to‑Noise Ratio (SNR) | 87 dB min @ 10 kHz |
| Total Harmonic Distortion (THD) | -96 dB max @ 10 kHz |
| Typical Power Dissipation | 21 mW |
The AD7660 can operate at up to 100 kSPS throughput.
It runs from a single 5 V supply.
Typical power dissipation is about 21 mW at 100 kSPS.
The device accepts an input range from 0 V to 2.5 V.
