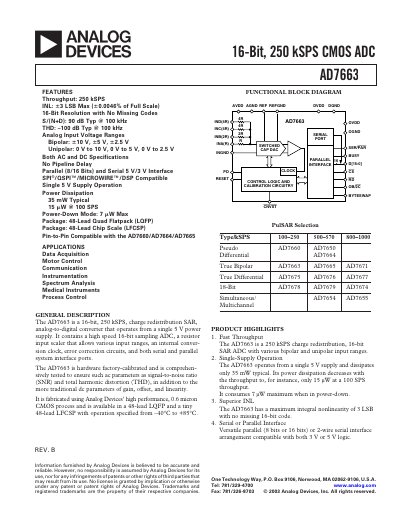

Analog Devices AD7663 16‑bit ADC Datasheet
Datasheet 24 pages · 416 KB · EN
The AD7663 is a 16‑bit, 250 kSPS charge‑redistribution SAR analog‑to‑digital converter from Analog Devices. It operates from a single 5 V supply and offers multiple bipolar and unipolar input ranges, high‑speed conversion, and both serial and parallel interfaces.
The document provides detailed specifications, timing diagrams, pin configurations, and functional descriptions, enabling designers to integrate the AD7663 into data‑acquisition, motor‑control, instrumentation, and other applications.
Analog Devices AD7663 specifications
| Resolution | 16 bits |
|---|---|
| Throughput | 250 kSPS |
| Power Dissipation (typical) | 35 mW |
| Supply Voltage | 5 V (single‑supply) |
