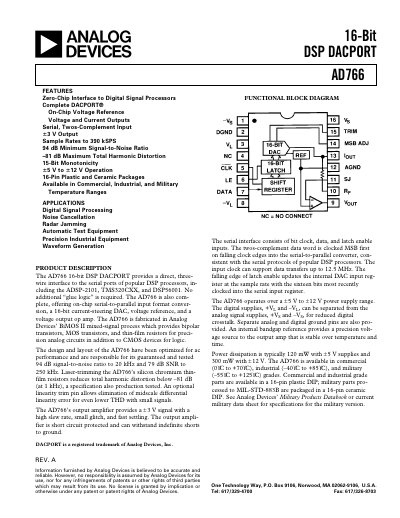

Analog Devices AD766 DSP DACPORT Datasheet
The AD766 provides a direct three‑wire interface to popular DSP processors such as the ADSP‑2101, TMS320CXX and DSP56001, eliminating the need for external glue logic. It integrates a serial‑to‑parallel converter, a 16‑bit current‑steering DAC, a precision voltage reference, and an on‑chip output op‑amp.
Designed in Analog Devices’ BiMOS II mixed‑signal process, the device operates from ±5 V to ±12 V, offers up to 12.5 MHz serial clock rates, and includes features such as short‑circuit protection, ESD Category 1 classification, and selectable temperature grades for commercial, industrial, and military applications.
Analog Devices AD766 specifications
| Resolution | 16 bits |
|---|---|
| Digital Input VIH | 2.0 V |
| Output Voltage Range | ±3 V |
All Analog Devices AD766 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum serial clock rate for the AD766?
The input clock can support data transfers up to 12.5 MHz.
What supply voltage range does the AD766 operate over?
It operates over a ±5 V to ±12 V power‑supply range.
What is the maximum sample rate of the AD766?
The AD766 can sample at up to 500 kSPS.
How much power does the AD766 dissipate at a +5 V supply?
Typical power dissipation is 120 mW.
