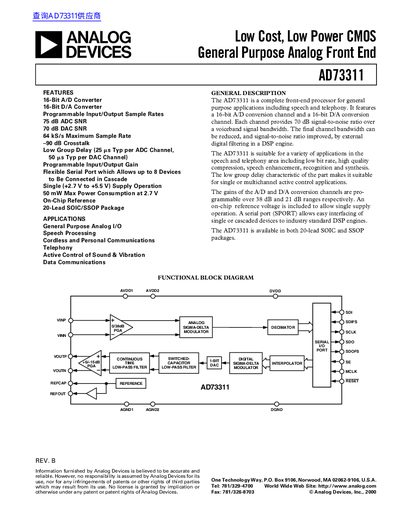

Analog Devices AD73311 Low Cost Low Power CMOS General Purpose Analog Front End Datasheet
The AD73311 is a complete front-end processor featuring a 16-bit analog-to-digital (A/D) conversion channel and a 16-bit digital-to-analog (D/A) conversion channel. It operates on a single +2.7 V to +5.5 V supply with a maximum power consumption of 50 mW at 2.7 V.
Read onlineAnalog Devices AD73311 specifications
| Resolution | 16-bit A/D and D/A Converter |
|---|---|
| Maximum Sample Rate | 64 kS/s |
| ADC SNR (Voiceband) | 75 dB |
| DAC SNR | 70 dB |
| Supply Voltage Range | +2.7 V to +5.5 V |
| Maximum Power Consumption | 50 mW at 2.7 V |
| Operating Temperature Range | -40°C to +85°C |
Source: Analog Devices AD73311 Low Cost Low Power CMOS General Purpose Analog Front End Datasheet
All Analog Devices AD73311 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for the AD73311?
The device is available in both 20-lead SOIC and SSOP packages.
From: Analog Devices AD73311 Low Cost Low Power CMOS General Purpose Analog Front End Datasheet
What is the maximum sample rate of the AD73311?
The maximum sample rate for the device is 64 kS/s.
From: Analog Devices AD73311 Low Cost Low Power CMOS General Purpose Analog Front End Datasheet
What is the maximum input range of the ADC?
The ADC maximum input range is 1.578 V p‑p with a 3 V supply (3.156 V p‑p with a 5 V supply).
How many devices can be connected in cascade on the serial port?
The serial port can connect up to eight devices in cascade.
What is the operating temperature range of the AD73311?
The device operates from –40 °C to +85 °C.
What is the power‑supply rejection ratio of the AD73311?
The power‑supply rejection is –55 dB.
