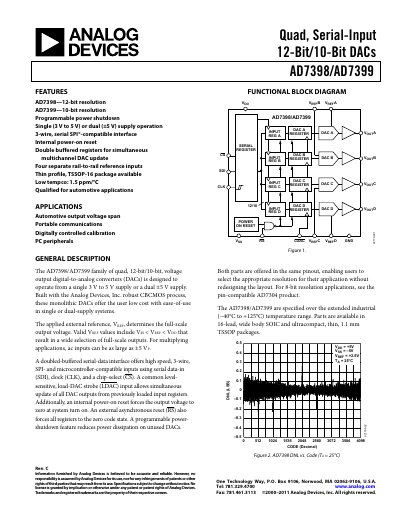

Analog Devices AD7398/AD7399 Quad DAC Datasheet Rev C
The AD7398/AD7399 family are quad voltage‑output digital‑to‑analog converters offering 12‑bit (AD7398) or 10‑bit (AD7399) resolution. They operate from a single 3 V‑5 V supply or a dual ±5 V supply and feature a 3‑wire SPI‑compatible serial interface, double‑buffered registers, and programmable power‑shutdown.
The document lists detailed electrical specifications, timing diagrams, absolute maximum ratings, pin‑out descriptions, and ordering information. It also includes typical performance curves, application notes for automotive and portable communications, and guidance for microprocessor interfacing.
Analog Devices AD7399 specifications
| Resolution | 12 bits (AD7398) / 10 bits (AD7399) |
|---|---|
| Supply Voltage Range | 3 V to 5 V (single) or ±5 V (dual) |
| Relative Accuracy (INL) | ±1.5 LSB |
| Differential Nonlinearity (DNL) | ±1 LSB max |
| Shutdown Supply Current (IDD_SD) | 30 µA typical, 60 µA max |
| Output Current (IOUT) | ±5 mA typical |
| Operating Temperature Range | ‑40 °C to +125 °C |
Source: Analog Devices AD7398/AD7399 Quad DAC Datasheet Rev C
All Analog Devices AD7399 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage ranges does the AD7398 support?
The AD7398 can be powered from a single 3 V to 5 V supply or from a dual ±5 V supply.
What is the shutdown supply current of the AD7398/AD7399?
The shutdown supply current is typically 30 µA and up to 60 µA without load.
What supply voltage range can the AD7398/AD7399 operate from?
They operate from a single supply of 3 V to 5 V or from dual supplies of ±5 V.
From: Analog Devices AD7398/AD7399 Quad Serial-Input DAC Datasheet
What is the maximum clock frequency for the serial interface?
The serial interface can run up to 16.6 MHz.
From: Analog Devices AD7398/AD7399 Quad Serial-Input DAC Datasheet
