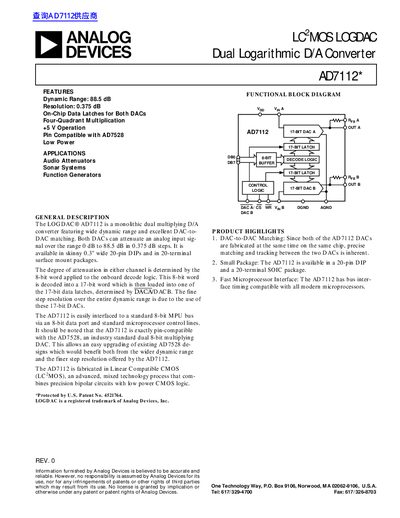

Analog Devices AD7112 Dual Logarithmic D/A Converter Datasheet
The AD7112 is a monolithic dual multiplying D/A converter featuring wide dynamic range and excellent DAC-to-DAC matching. Both DACs can attenuate an analog input signal over the range 0 dB to 88.5 dB in 0.375 dB steps. It is fabricated in Linear Compatible CMOS (LC MOS) technology.
Read onlineAnalog Devices AD7112 specifications
| Dynamic Range | 88.5 dB |
|---|---|
| Resolution | 0.375 dB |
| Operating Voltage | +5 V |
| Package Type | 20-pin DIP or 20-terminal SOIC |
Source: Analog Devices AD7112 Dual Logarithmic D/A Converter Datasheet
All Analog Devices AD7112 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dynamic range of the AD7112?
The device features a wide dynamic range of 88.5 dB.
From: Analog Devices AD7112 Dual Logarithmic D/A Converter Datasheet
Is the AD7112 pin compatible with other devices?
Yes, it is exactly pin-compatible with the industry standard dual 8-bit multiplying DAC, the AD7528.
From: Analog Devices AD7112 Dual Logarithmic D/A Converter Datasheet
What are the absolute maximum ratings for VDD to AGND?
VDD to AGND or DGND may not exceed –0.3 V to +7 V.
