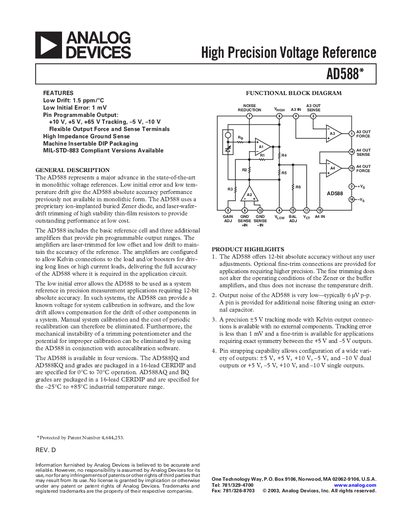

Analog Devices AD588* High Precision Voltage Reference Datasheet
The AD588 is a monolithic voltage reference featuring low initial error (1 mV) and low temperature drift (1.5 ppm/°C). It utilizes a proprietary ion-implanted buried Zener diode and laser-wafer-drift trimming to ensure absolute accuracy suitable for 12-bit systems.
The device offers pin-programmable output voltages including +10 V, +5 V, -5 V, and -10 V configurations. It includes three additional amplifiers configured for Kelvin connections or driving high current loads, available in CERDIP packages with industrial (A, B) or commercial (J, K) temperature ranges.
Analog Devices AD588 specifications
| Initial Error | 1 mV (AD588BQ/KQ) |
|---|---|
| Temperature Drift | 1.5 ppm/°C |
| Output Voltage Error (+10 V) | +3 to +1 mV |
| Supply Current | 6 mA (Typical) |
Source: Analog Devices AD588* High Precision Voltage Reference Datasheet
All Analog Devices AD588 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the AD588 be used as a system reference for 12-bit accuracy?
Yes, its low initial error allows it to provide known voltage for system calibration in applications requiring 12-bit absolute accuracy.
From: Analog Devices AD588* High Precision Voltage Reference Datasheet
What is the maximum power dissipation for the AD588?
The device can dissipate up to 300 mW.
From: Analog Devices AD588* High Precision Voltage Reference Datasheet
What package options are available for the AD588?
The AD588 is offered in 16‑lead SOIC‑W and 16‑lead CERDIP packages, with MIL‑STD‑883‑qualified versions.
What is the maximum allowed supply voltage rating?
The device is rated for a total supply voltage of ±36 V.
