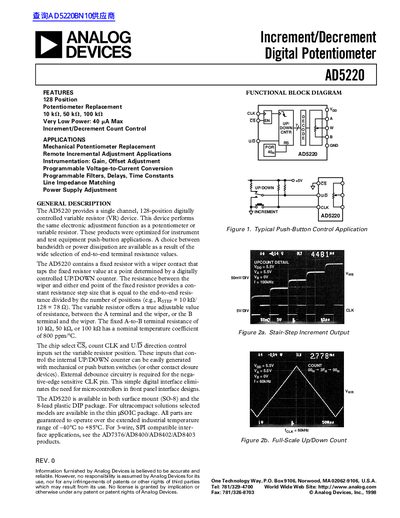

Analog Devices AD5220 Increment/Decrement Digital Potentiometer Datasheet
The AD5220 is a single-channel, 128-position digitally controlled variable resistor (VR) designed to replace mechanical potentiometers. It features an internal UP/DOWN counter controlled by digital inputs for remote or push-button adjustment without requiring a microcontroller.
Available in 10 kΩ, 50 kΩ, and 100 kΩ end-to-end resistance values, the device operates over an industrial temperature range of -40°C to +85°C. It is offered in SO-8, DIP, and uSOIC packages with very low power consumption (40 pA max) and includes specifications for both rheostat and potentiometer divider modes.
Analog Devices AD5220 specifications
| Resolution | 128 positions (7 bits) |
|---|---|
| Resistance Values | 10 kΩ, 50 kΩ, or 100 kΩ |
| Supply Voltage Range | +2.7 V to +5.5 V |
| Operating Temperature Range | -40°C to +85°C |
| Max Supply Current | 40 µA (at 5V) |
| Package Types | SO-8, DIP (N-8), uSOIC (RM-8) |
Source: Analog Devices AD5220 Increment/Decrement Digital Potentiometer Datasheet
All Analog Devices AD5220 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the resistance options for the AD5220?
The device is available with end-to-end terminal resistances of 10 kΩ, 50 kΩ, or 100 kΩ.
From: Analog Devices AD5220 Increment/Decrement Digital Potentiometer Datasheet
Does the AD5220 require a microcontroller to operate?
No, it uses a simple digital interface with mechanical or push-button switches that eliminates the need for microcontrollers.
From: Analog Devices AD5220 Increment/Decrement Digital Potentiometer Datasheet
How many positions does the AD5220 have?
The AD5220 provides 128 digitally controlled positions.
What supply voltage range does the AD5220 support?
It operates with a supply voltage (VDD) from 2.7 V to 5.5 V.
What temperature range can the AD5220 operate in?
The AD5220 is guaranteed to operate from –40 °C to +85 °C.
How many discrete positions does the AD5220 provide?
It provides 128 discrete positions.
