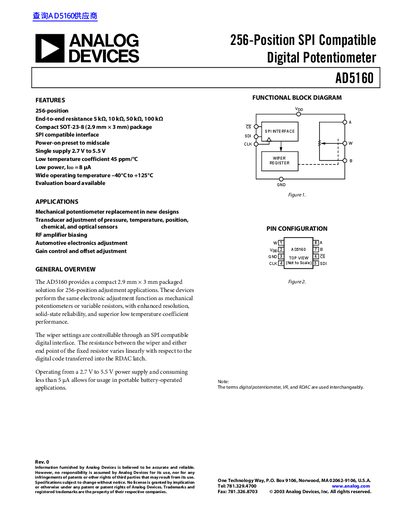

ANALOG DEVICES AD5160 256-Position SPI Compatible Digital Potentiometer handbook
The AD5160 is a compact digital potentiometer designed for applications requiring electronic adjustment where mechanical potentiometers are used. It features an 8-bit resolution and offers end-to-end resistance options of 5 kΩ, 10 kΩ, 50 kΩ, or 100 kΩ.
The device operates with a single supply voltage ranging from 2.7 V to 5.5 V and includes a power-on preset feature that sets the wiper to midscale upon startup. It is controlled via an SPI-compatible interface and is suitable for use in automotive electronics, RF amplifier biasing, and sensor transducer adjustments.
Analog Devices AD5160 specifications
| Resolution | 8 Bits |
|---|---|
| End-to-end resistance options | 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
| Package type | SOT-23-8 (2.9 mm x 3 mm) |
| Power supply range | 2.7 V to 5.5 V |
| Operating temperature range | -40°C to +125°C |
| Resistance Temperature Coefficient (5 kΩ version) | 45 ppm/°C |
| Shutdown Supply Current | 0.01 µA to 1 µA (typical) |
Source: ANALOG DEVICES AD5160 256-Position SPI Compatible Digital Potentiometer handbook
All Analog Devices AD5160 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD5160?
The device provides an 8-bit resolution.
From: ANALOG DEVICES AD5160 256-Position SPI Compatible Digital Potentiometer handbook
Is the AD5160 compatible with SPI interfaces?
Yes, it features a SPI compatible interface for controlling wiper settings.
From: ANALOG DEVICES AD5160 256-Position SPI Compatible Digital Potentiometer handbook
How many positions does the AD5160 provide?
The AD5160 provides 256 discrete resistance positions.
What is the supply voltage range for the AD5160?
It operates from 2.7 V up to 5.5 V.
What is the resolution of the AD5160?
The AD5160 provides an 8‑bit resolution.
What supply voltage range does the AD5160 operate from?
It operates from a single supply of 2.7 V to 5.5 V.
