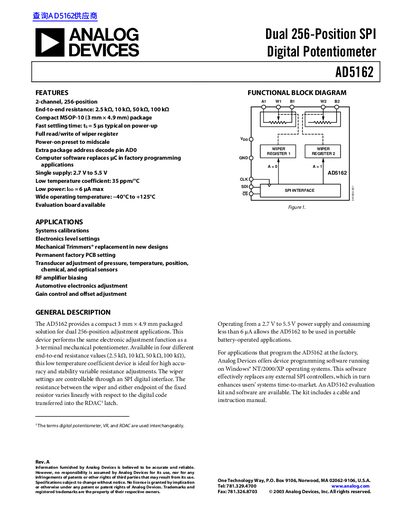

Analog Devices AD5162 Dual 256-Position SPI Digital Potentiometer Datasheet
The document describes the AD5162, a compact dual-channel digital potentiometer designed for high-accuracy variable resistance adjustments. It features an end-to-end resistance of 2.5 kΩ, 10 kΩ, 50 kΩ, or 100 kΩ and operates from a single supply voltage between 2.7 V and 5.5 V.
Read onlineAnalog Devices AD5162 specifications
| End-to-end resistance options | 2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
|---|---|
| Operating temperature range | -40°C to +125°C |
| Power supply range | 2.7 V to 5.5 V |
| Supply current (typical) | 6 µA max |
| Package type | MSOP-10 (3 mm x 4.9 mm) |
Source: Analog Devices AD5162 Dual 256-Position SPI Digital Potentiometer Datasheet
All Analog Devices AD5162 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the settling time of the AD5162 on power-up?
The device has a fast settling time of 5 µs typical on power-up.
From: Analog Devices AD5162 Dual 256-Position SPI Digital Potentiometer Datasheet
Is the AD5162 compatible with SPI interfaces?
Yes, the wiper settings are controllable through an SPI digital interface.
From: Analog Devices AD5162 Dual 256-Position SPI Digital Potentiometer Datasheet
What is the supply voltage range for the AD5162?
The AD5162 operates from 2.7 V to 5.5 V.
From: Analog Devices AD5162 Dual 256-Position SPI Digital Potentiometer Datasheet
How many positions does each channel of the AD5162 have?
Each channel provides 256 discrete positions.
From: Analog Devices AD5162 Dual 256-Position SPI Digital Potentiometer Datasheet
What is the supply voltage range for the AD5162?
The AD5162 operates from a single supply of 2.7 V to 5.5 V.
What package type does the AD5162 use?
The device is offered in a compact MSOP‑10 package measuring 3 mm × 4.9 mm.
